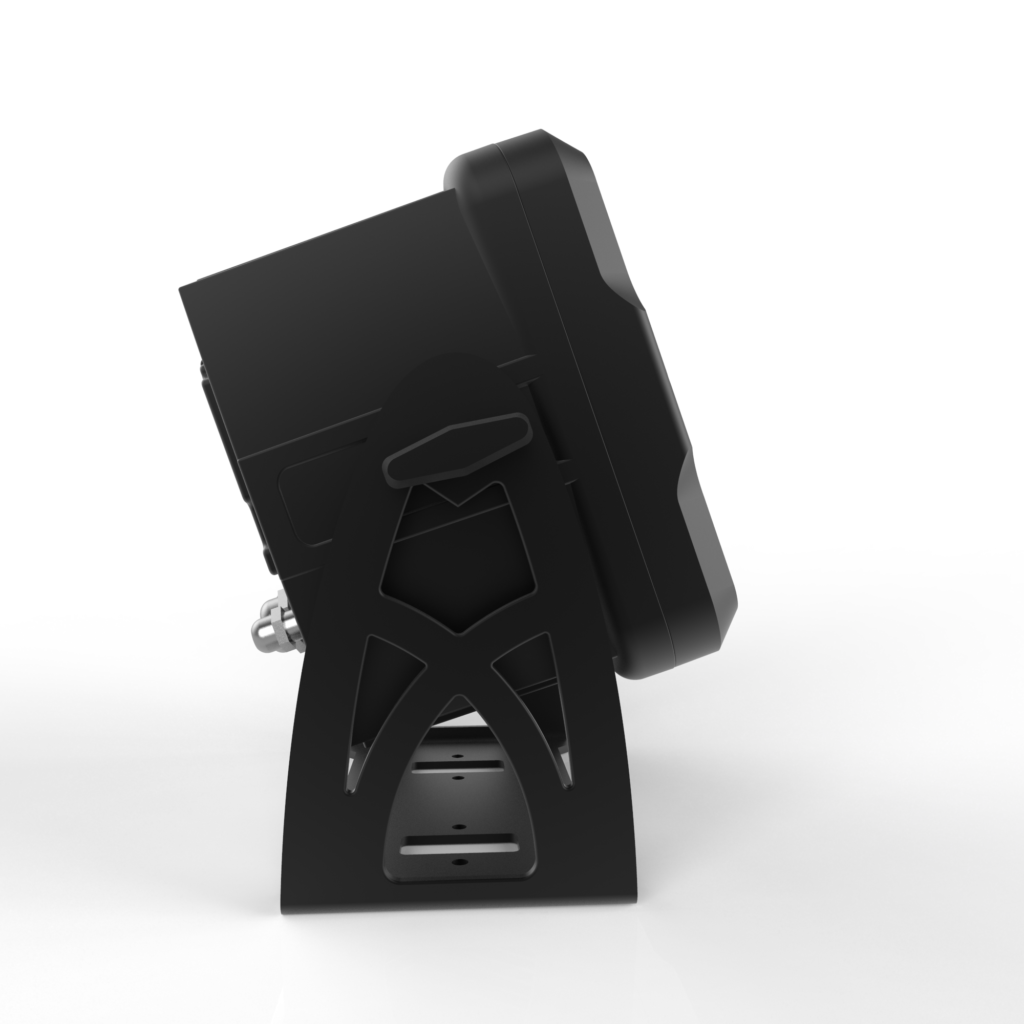

PANORAMIC

Parled Outdoor

9x15W RGBWA+UV 6in1 LEDs

OLED digital display

Macro, static, fade, Jump, Pulse Colors

0-100% linear dimmer

Seetronics PowerCon connector

TECHNICAL DATA

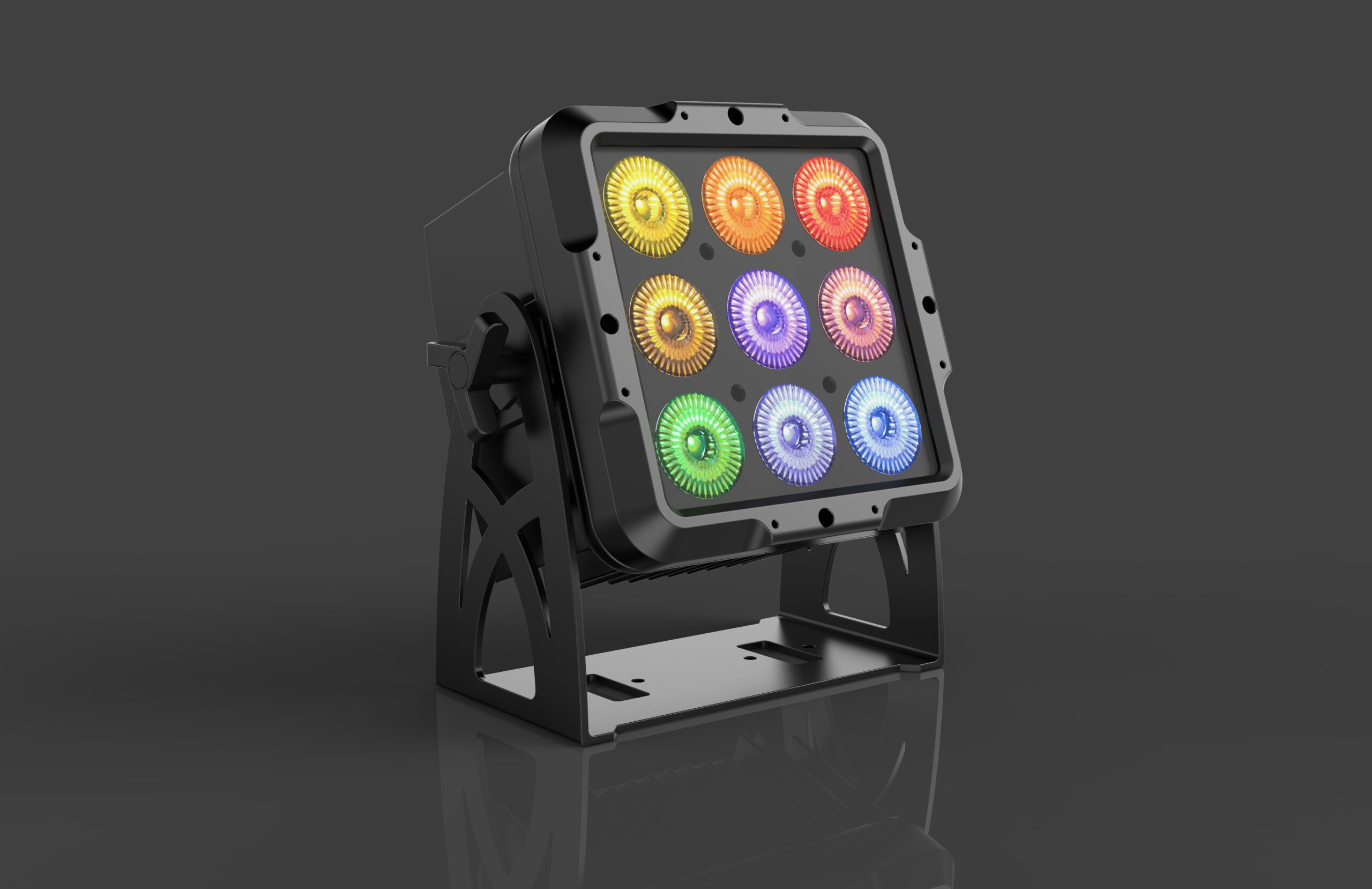

FIRST is the new version and conception of the ParLEDs with a new design. Its 9 x 15w LEDs allow a high luminous efficiency and furthermore with its being RGBWA + UV it allows to obtain an efficient color changer capable of reproducing real, bright, intense and saturated colours.

FIRST is one of the most innovative LED pars, as it offers you a DMX control mode and the ability to create effects with a pleasant view, with its macro, static, fade, jump and pulse multi color functions.

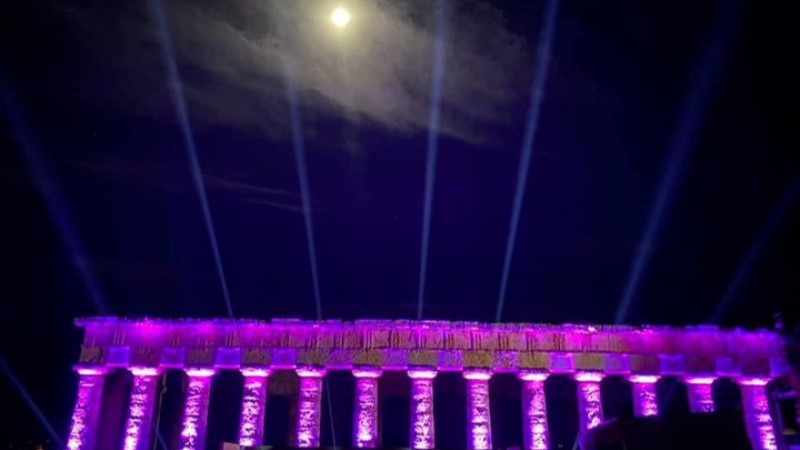

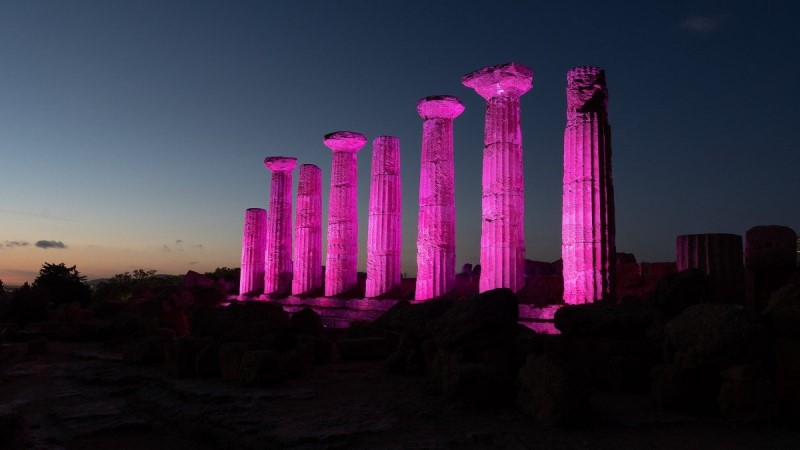

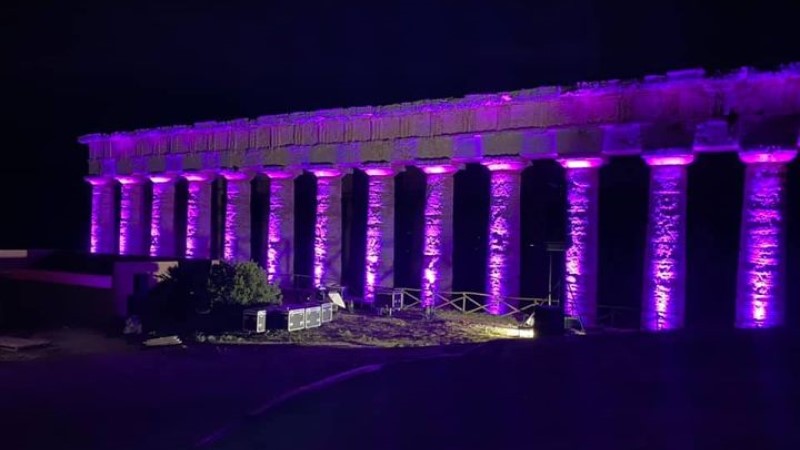

The versatility of FIRST makes it ideal for rental use but also for installations in any entertainment venue.

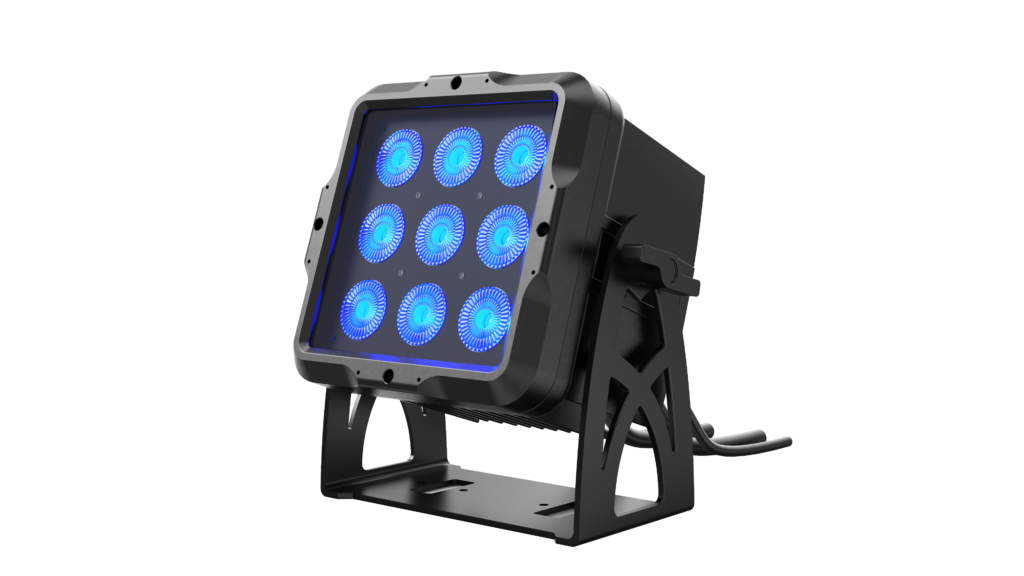

Light source: 9x15W RGBWA+UV 6in1 LEDs

Beam angle: 30°

Built-in Effect: Macro color, static color, color fade, color jump, color pulse
Electronic Dimming: 0-100% linear dimmer

DMX Channels: 4/6/10CH
Control Mode: Auto-run, Master/Slave, Sound-Active, DMX 512

Power Consumption: 250W

Power Voltage: AC 100-240V, 50/60Hz

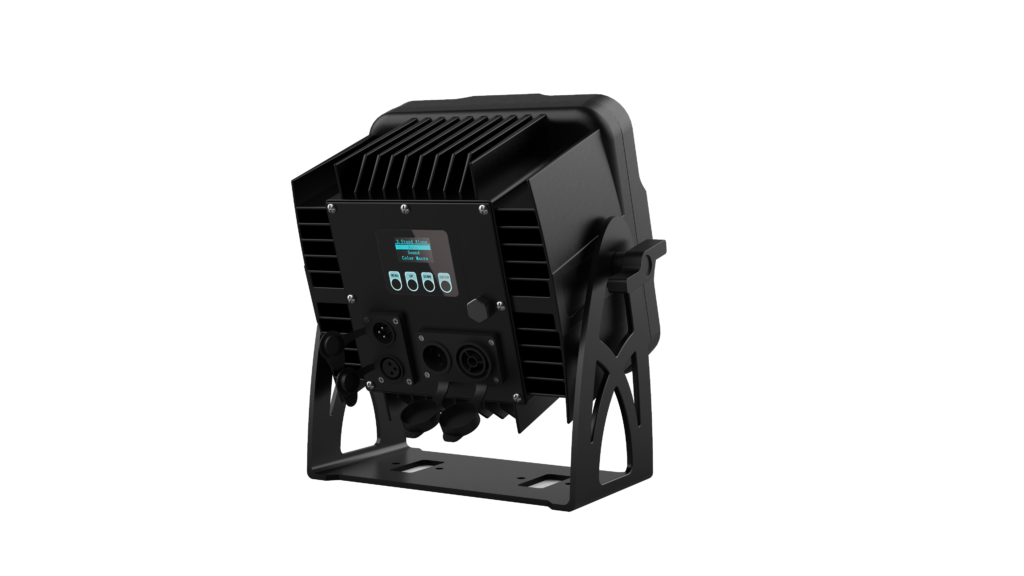

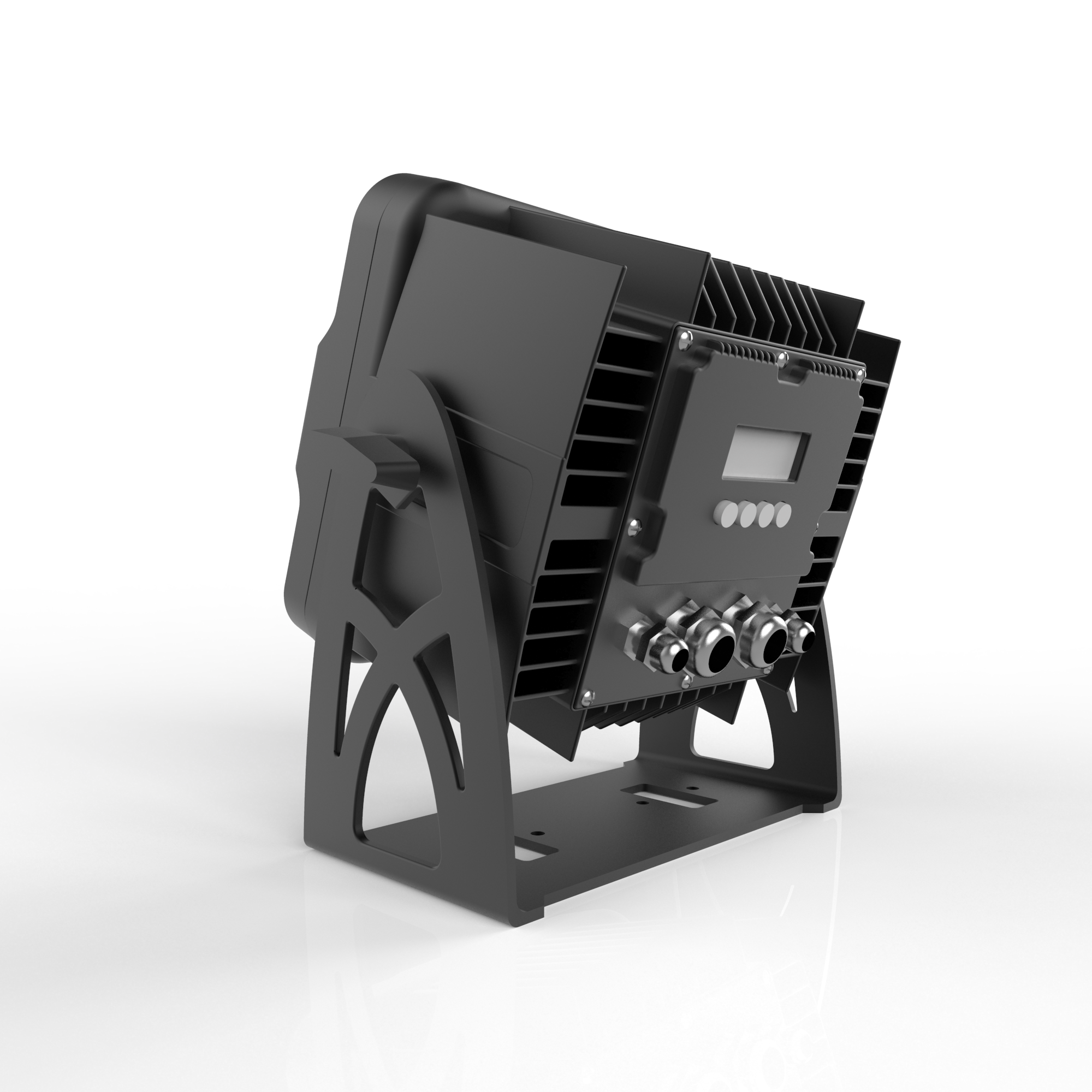

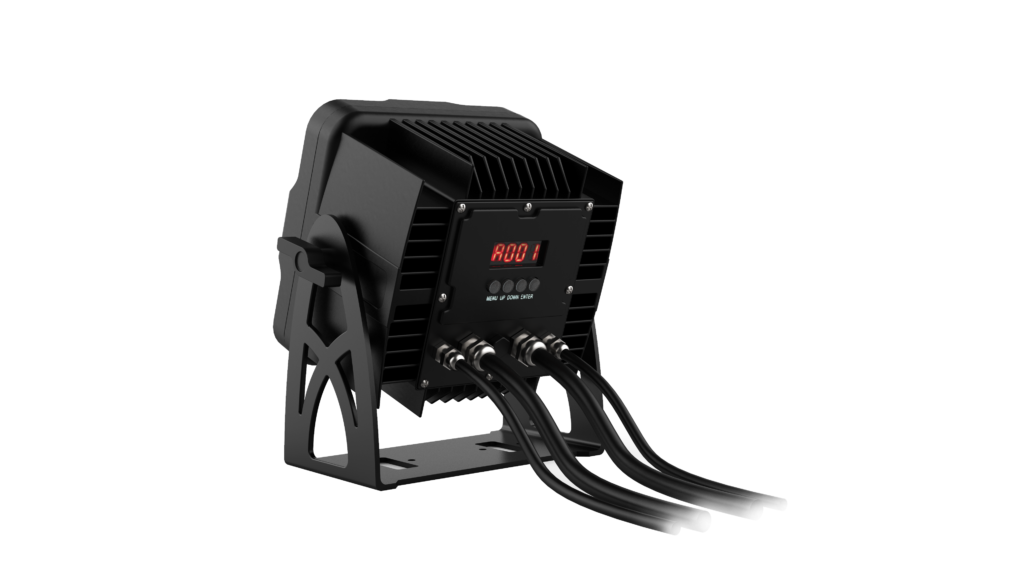

Indicators: OLED digital display
LED Lifespan: 100,000 hours life expectancy
Working temperature: -25°C~+35°C

Power connector: IP65 power cord

IP65 DMX in/out: 3pin XLR connnector

IP65 power in/out: 3pin Seetronics PowerCon connector

Housing case: Die-cast Aluminum body

Protection class IP: IP 65

Dimension:  255(L) x 246(W) x 159.5(H) mm

Weight: 6kg

Carton size: 27x27x38cm(1in1)

Carton size: 57x48x43cm(4in1)

Flightcase size: 57x48x43cm(4in1)
