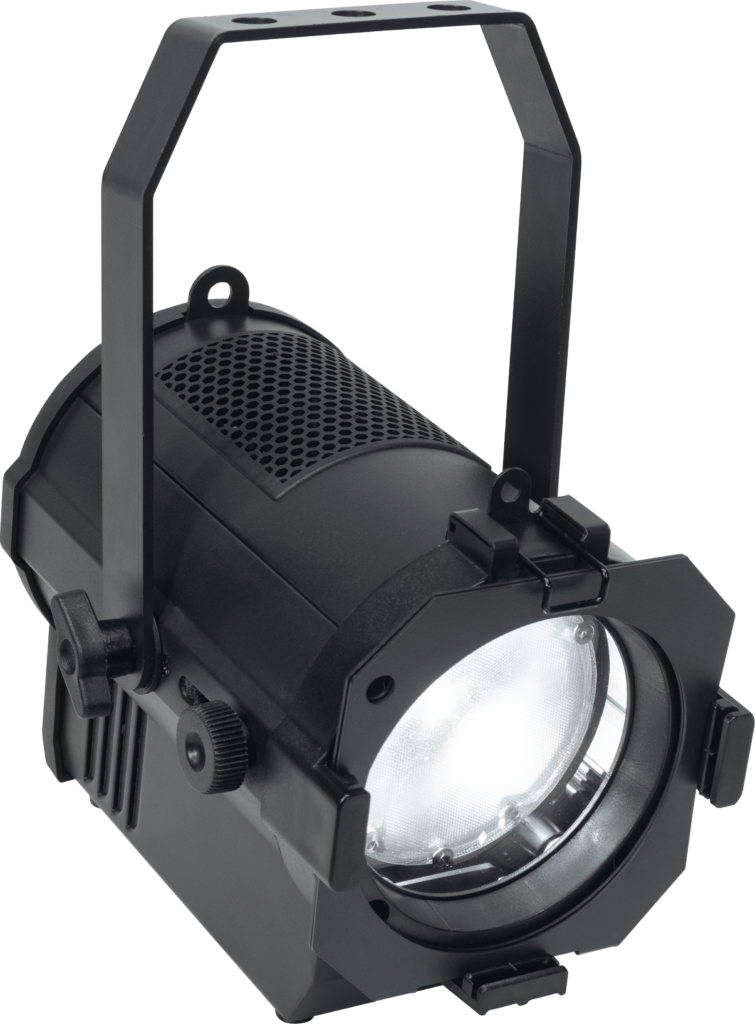

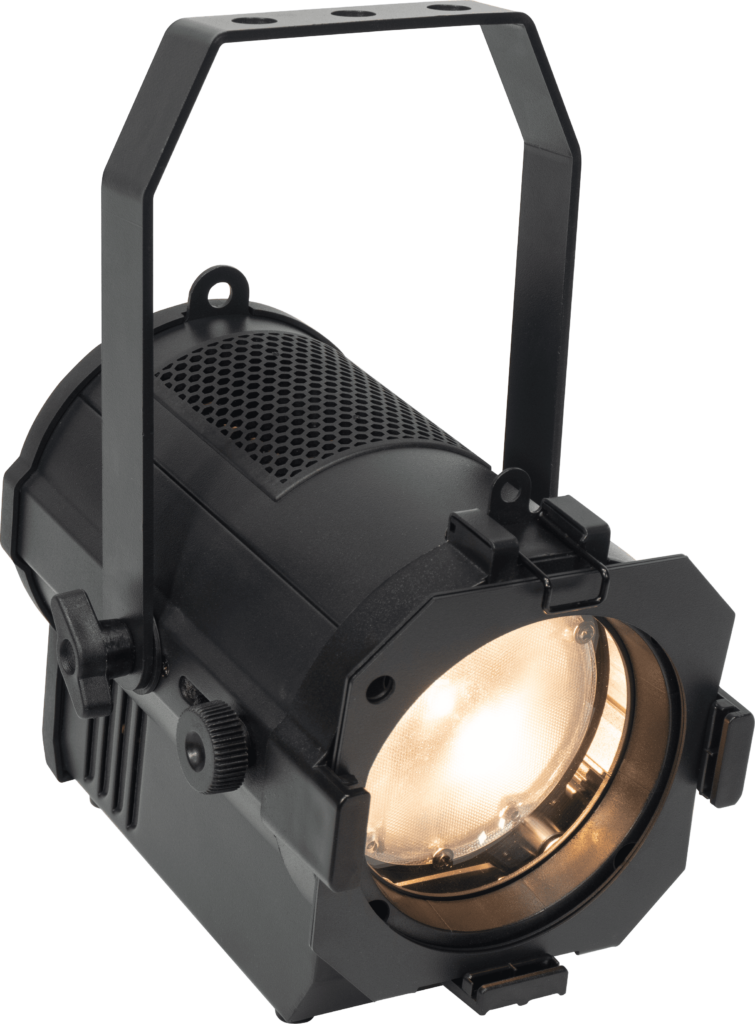

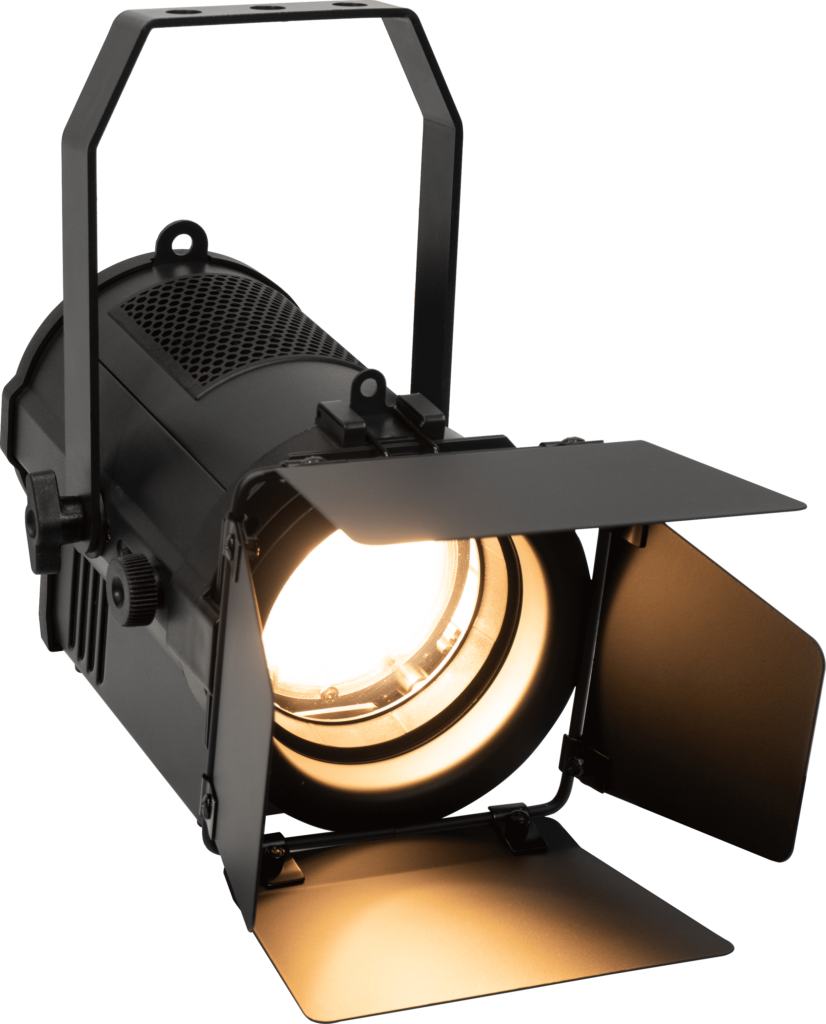

Fresnel Spotlight Compact Zoom Led Tunable

100Watt WW + 100Watt CW constant output

 2700K – 6500K tunable

Average CRI 95, R9≥90, flicker free

Soft and even wash effect, smooth dimming

25- 80° manual zoom

Knob, DMX and RDM controls

Intelligent fan, silent operation

TECHNICAL DATA

FRESLED Compact is a tunable white LED fresnel mini with zoom function. Color temperature 2700K – 6500K.
The RDM-DMX compliant, degree manual zoom along with it’s superior CRI make this fixture a good replacement for the traditional fresnels.

It’s an idea product for Broadcast, HD studio, Theatre, chruch, Film shooting, Museum, Exhibition lighting, Fashion.

Color temperature: It comes with tunable color temperature from 2700K to 6500K. Moreover, our innovation design ensures that the power stays same when adjusting color temperature. It is 100Watt warm white, 100Watt cold white and still 100Watt when mixing.

Robust design: The whole body is die-casting aluminum. Unique, clean and appearance. It’s durable for application.

Manual Zoom lens very wide 25-80°

Color reproduction: High CRI 95. The high color rendition make sure accurate color reproduction no matter.

It is a perfect product for places where the space is limited but powerful out-put is needed. Barndoor can be used for shape of light.

  • 100W WW + 100W CW LED Constant Output
  • 2700K – 6000K tunable
  • CRI 95, R9≥90 TLC≥96 (full on, 4000K)
  • 25° – 80° manual zoom
  • Soft and even wash effect
  • Smooth dimming
  • Flicker free
  • DMX, RDM control
  • AC power: 100–240 V nominal, 50/60 Hz

Photometric data:
• CRI (Color Rendering Index) : >95
• R9>90
• TLCI (Television Lighting Consistency Index): >96 (4,000K)

Thermal:
• Intelligent fan, silent operation

Gobos & color frame:
• Power cable, barndoor, gel frame, safety rope and gobo(optional)

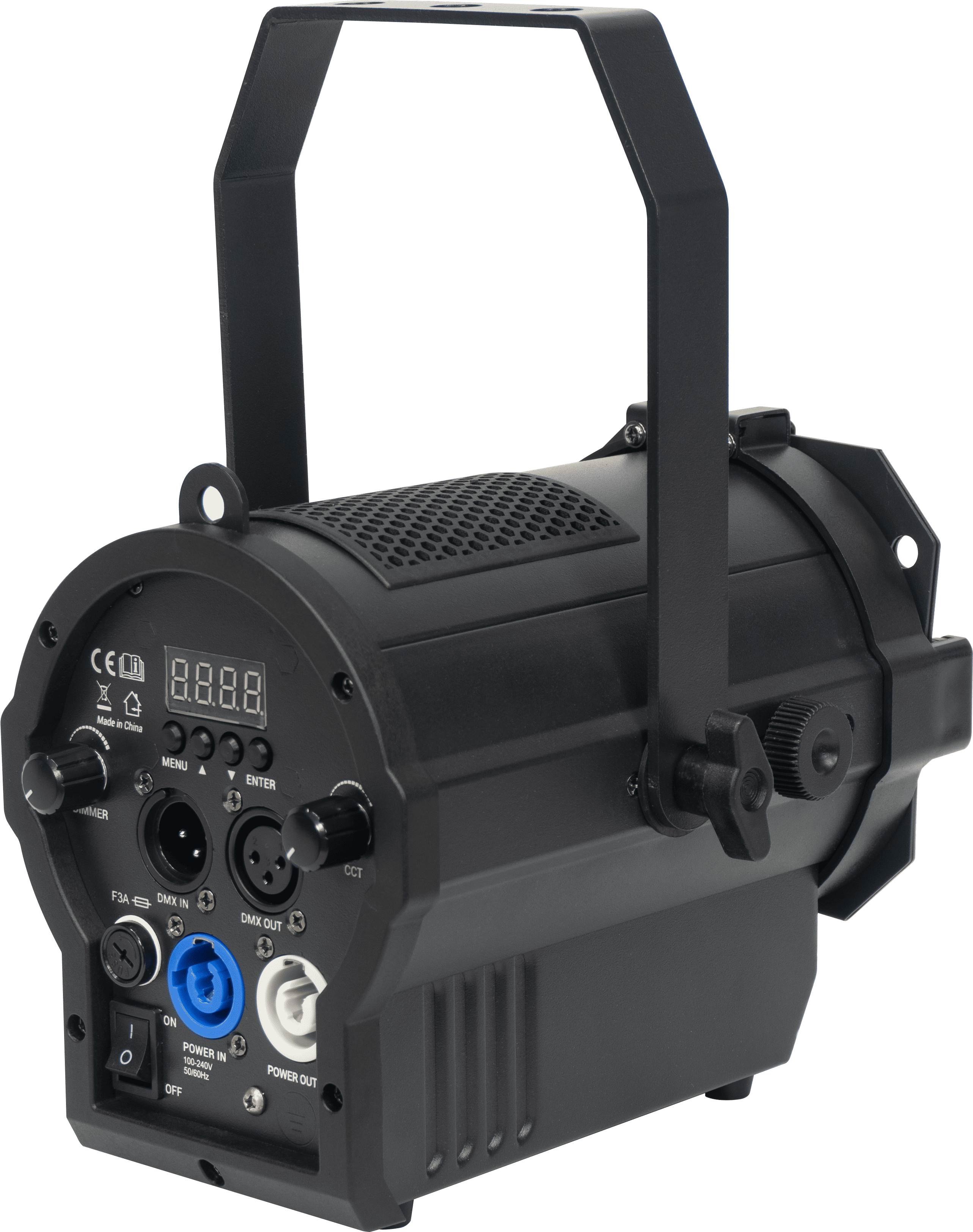

Installation:
• Mounting: Adjustable bracket
• Environment: IP20
• Orientation: Any

  • PowerCON in & out
  • 5-pin XLR in&out
  • Housing material: Die-cast aluminum
  • Color: Black
  • Dimensions: 230 x 156 x 279mm
  • Net Weight: 2.3kg(barn door included
