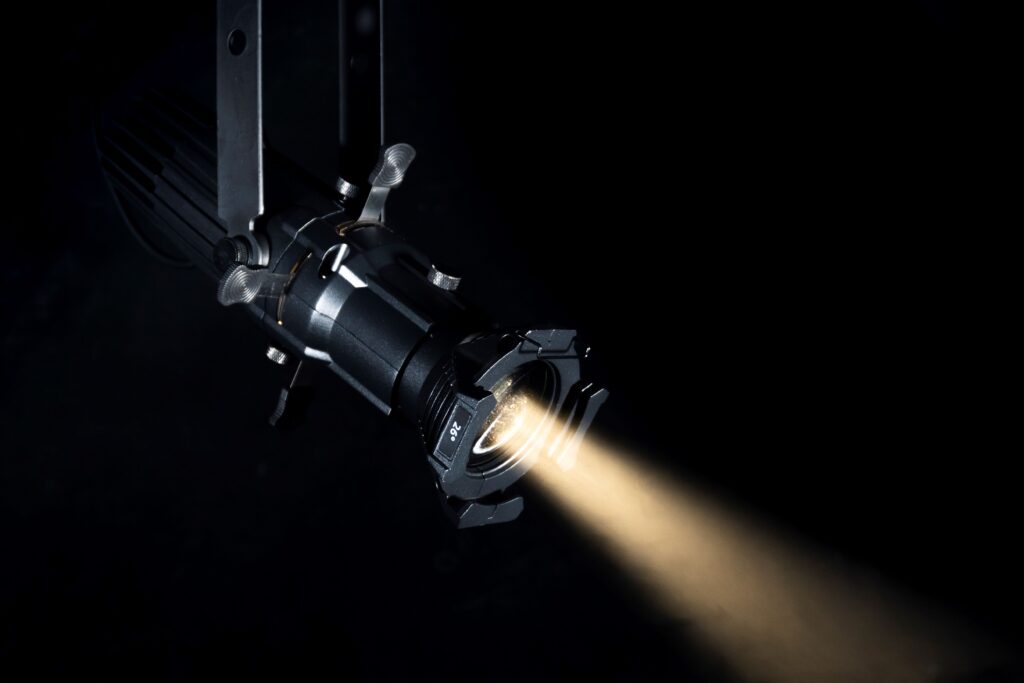

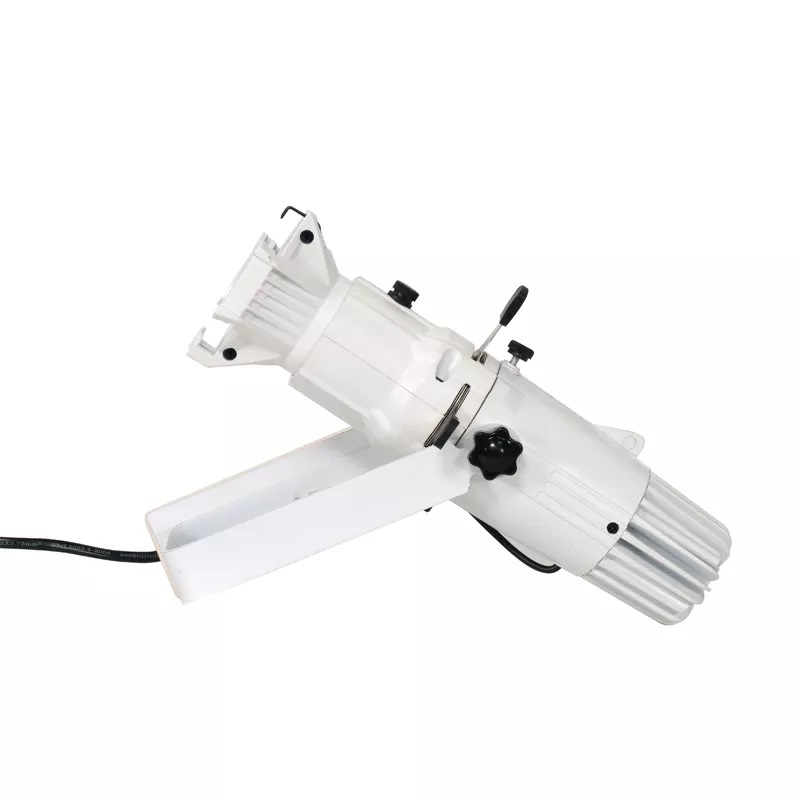

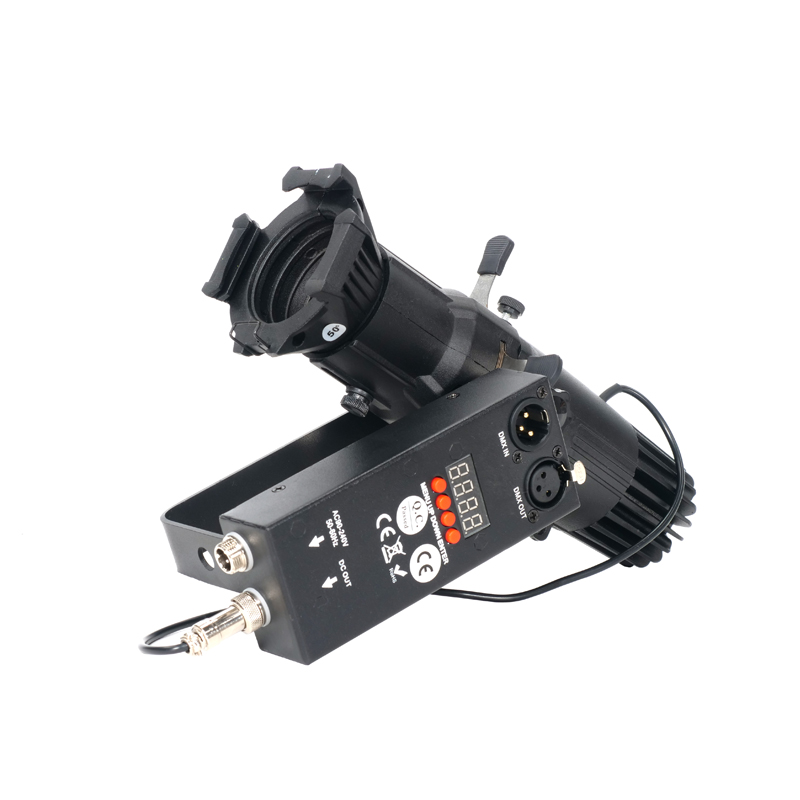

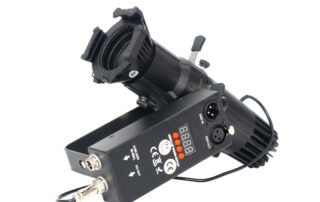

Mini Profile Tunable Led Spot

20W WW + 20W CW COB LED

2700K – 6000K adjustable

Color Rendering Index(CRI): Ra≥92

Optimized high definition optical system

Crystal-clear image projection

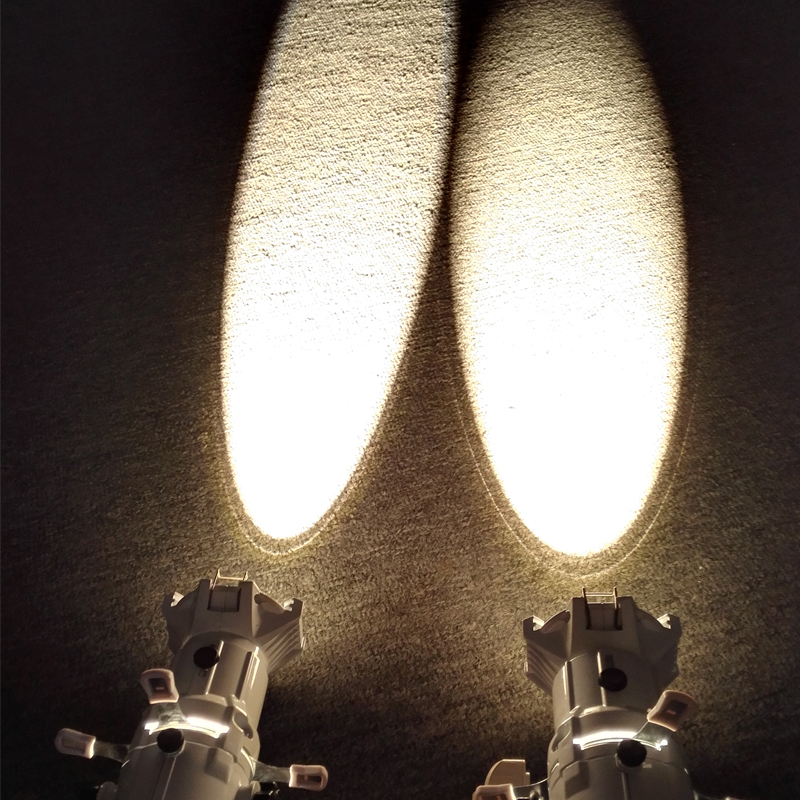

Beam edge continually adjustable hard-to-soft

Smooth dimming, flicker free

TECHNICAL DATA

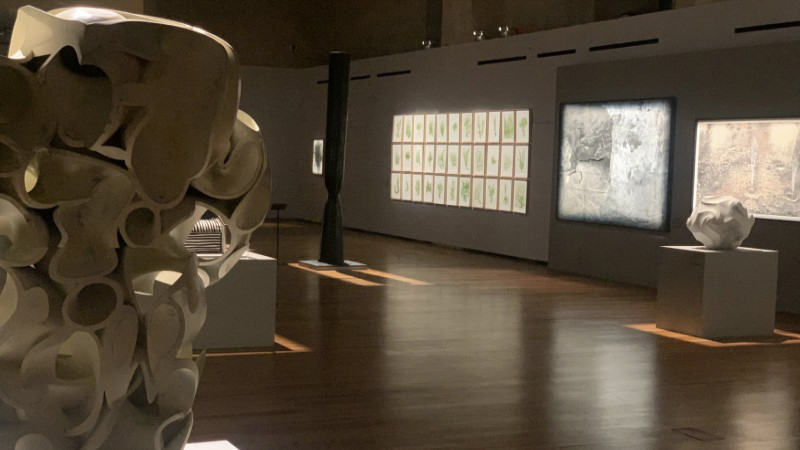

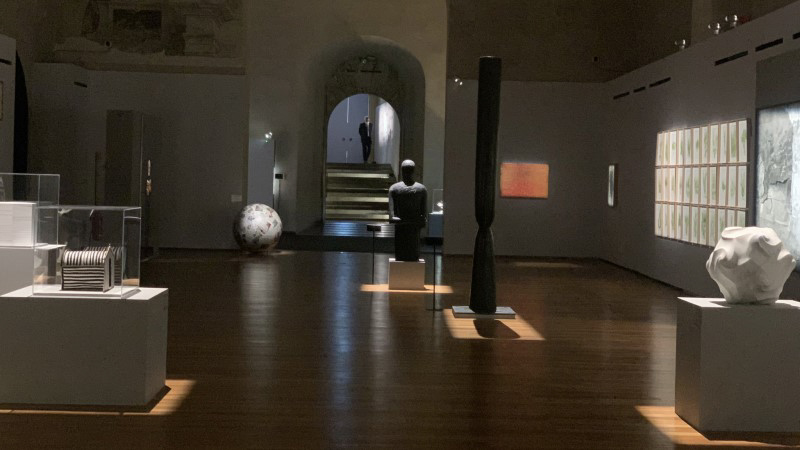

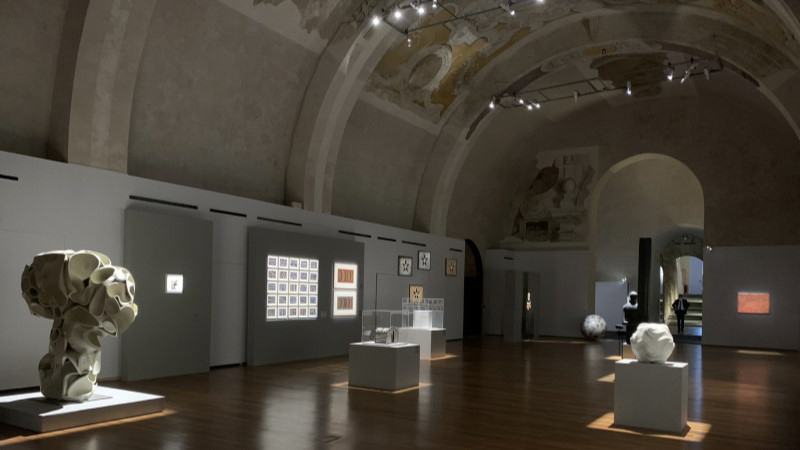

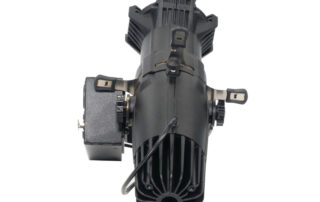

MINIP is a compact 20W mini Led profile tunable Spot, ideal for applications in museums, clubs, art galleries, shops, etc.

It comes with tunable color temperature from 2700K to 6000K. Moreover, our innovation design ensures that the power stays same when adjusting color temperature. It is 20Watt warm white, 20Watt cold white and still 20Watt when mixing.

It comes with an lens at 26° interchangable, the other lens available are 19°, 36°, 50° optionals

MINIP have a color rendering higher than 92(CRI> 92) which allows a brilliant colorimetry.

Double lens optics with a dichroic glass reflector and with the option of being able to order optics with different beam angles as well. The external power supply is placed on the bracket. It is in Die-casting housinga and more important have a fan-free design ideal for silent in the museum or theatre.

20W WW + 20W CW
2700K – 6000K adjustable
Color Rendering Index(CRI): Ra≥92

Lens: 26°interchangeable (19° 36°, 50° fix lens optionals)

Double lens optics with a dichroic glass reflector

• Optimized high definition optical system for improved photometric performance and field uniformity
• Projector-quality, high reflector
• Glass reflector that removes greater than 90% infrared radiation (heat) and reflects greater than 95% of visible light
• Flat and even spot image
• Ease of use, superior optics, crystal-clear image projection
• Beam edge continually adjustable hard-to-soft
• High-quality dimming, and even beam field
• High-strength single handle design

DMX mode:
• 1/2/3/5 DMX channels

AC110-240V/50-60Hz 50,000 hours life span and low power consumption

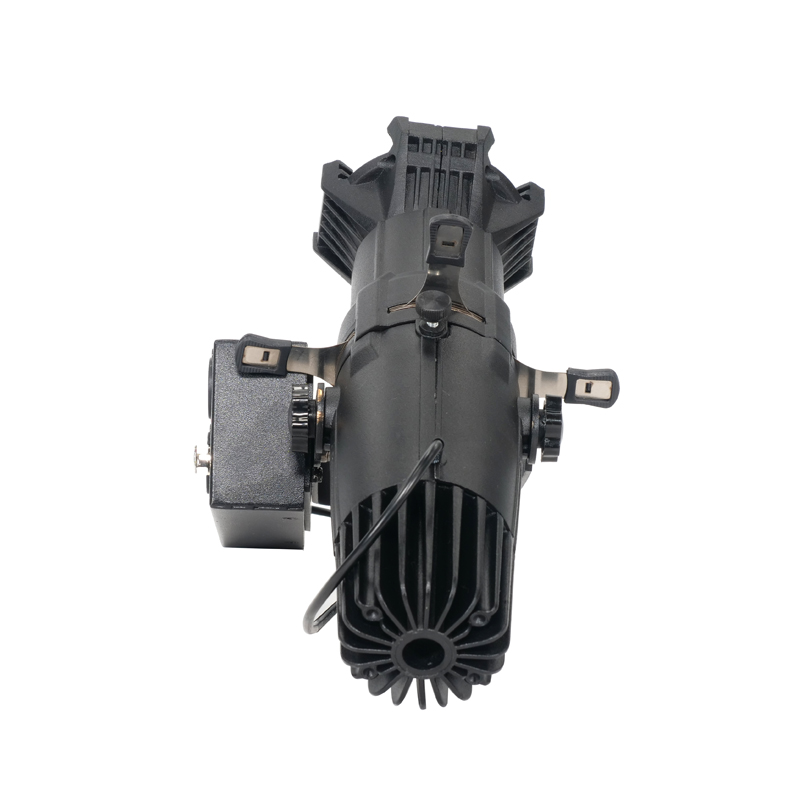

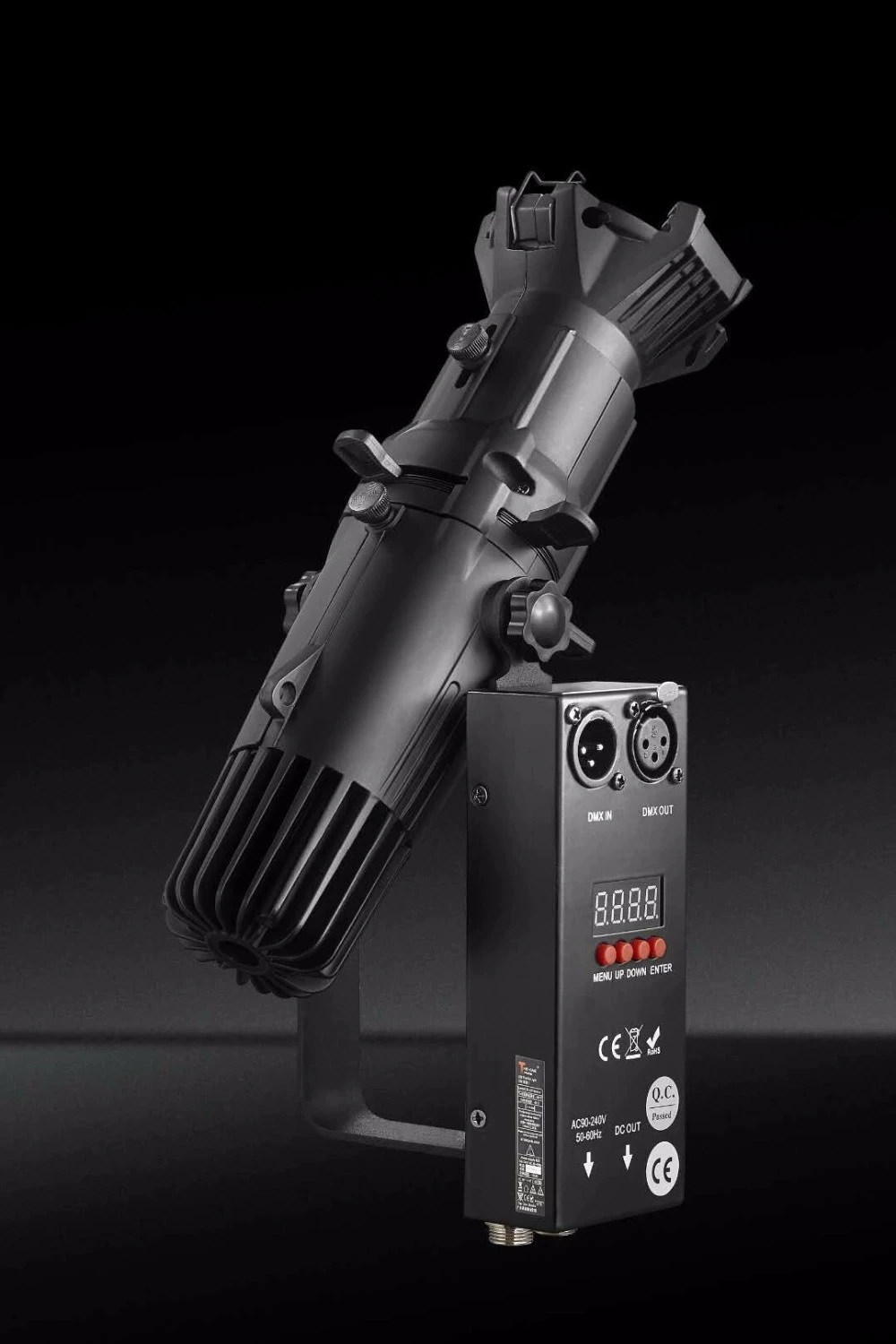

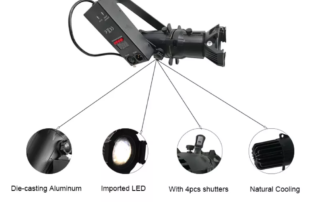

• 4-Button digital • Fan free design
• -10~40°C Max ambient temperature
• Gobo holder E sized, Clamp, Safety rope as optional

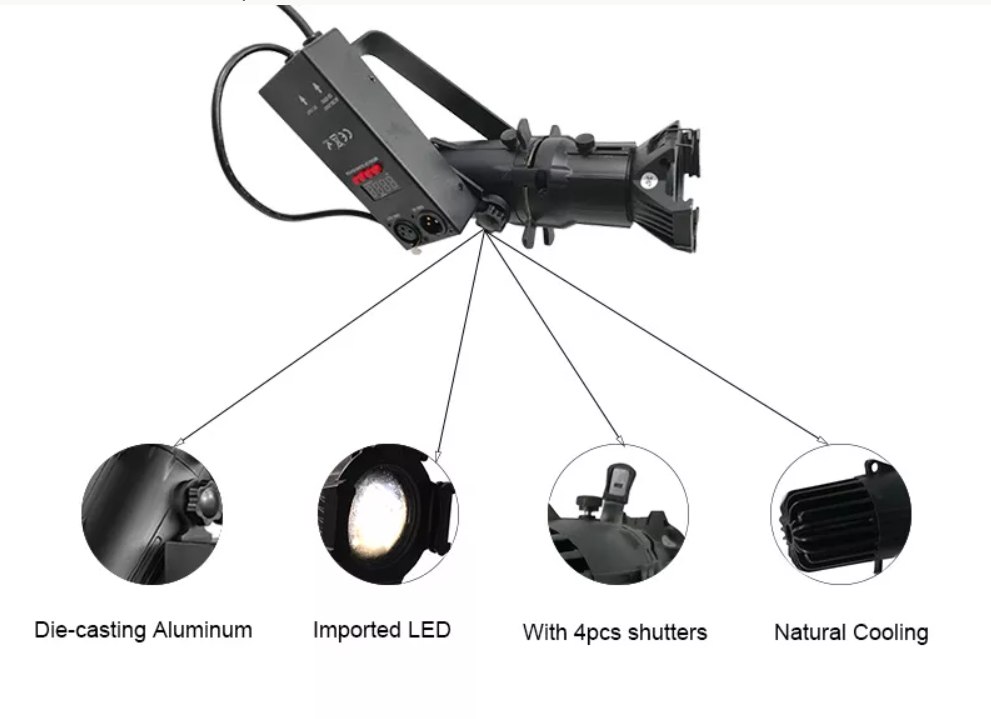

• 4 Metal spot cutting slots
• 0-100% Smooth and precise linear dimmer
• 25T/sec high speed shutter/strobe effect with variable speed

5-Pin XLR connectors IN/OUT

Housing material: die-casting aluminum
IP Rate:
IP20
Dimensions:
343.7 x 133 x 131mm
Packing size:
430*190*160mm (1pc/carton) 610*450*360mm (6pc/carton)
Net Weight:
1.7kg
Gross Weight:
2.5kg
