PANORAMIC

RgbL LED profile zoom

Adjustable Beam angle 15° – 30° or 25° – 50° optional

100W HD imaging LED light

Uniform color mixing, multiple dimming modes

High-definition optics, clear image

High brightness lamp beads, stable and reliable

Knob, button, DMX control dimming

Intelligent temperature control, ultra-quiet operation

TECHNICAL DATA

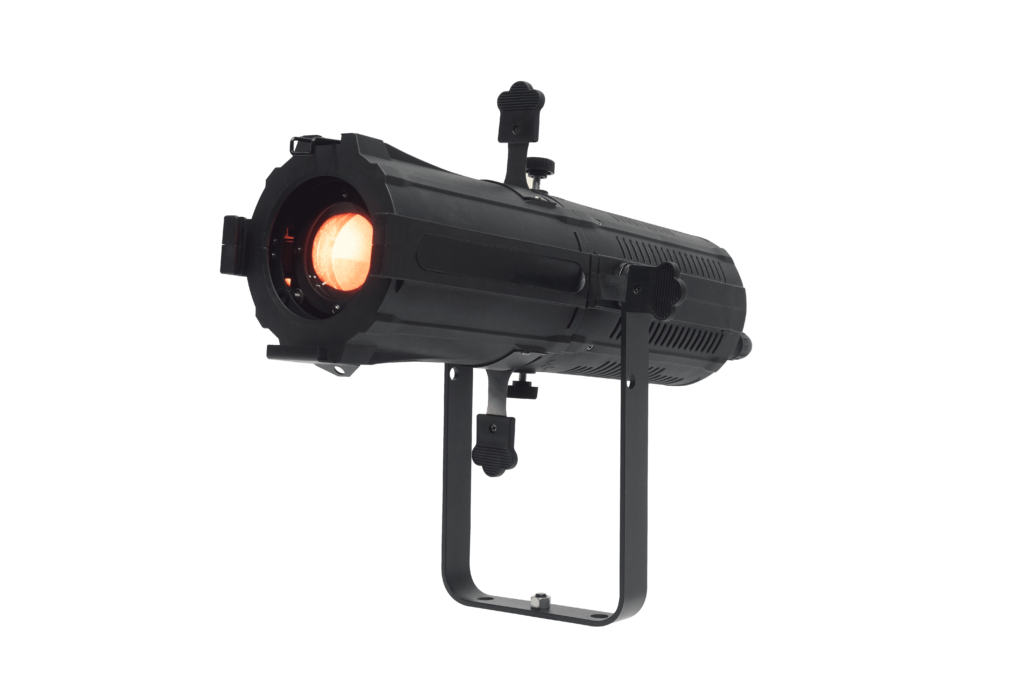

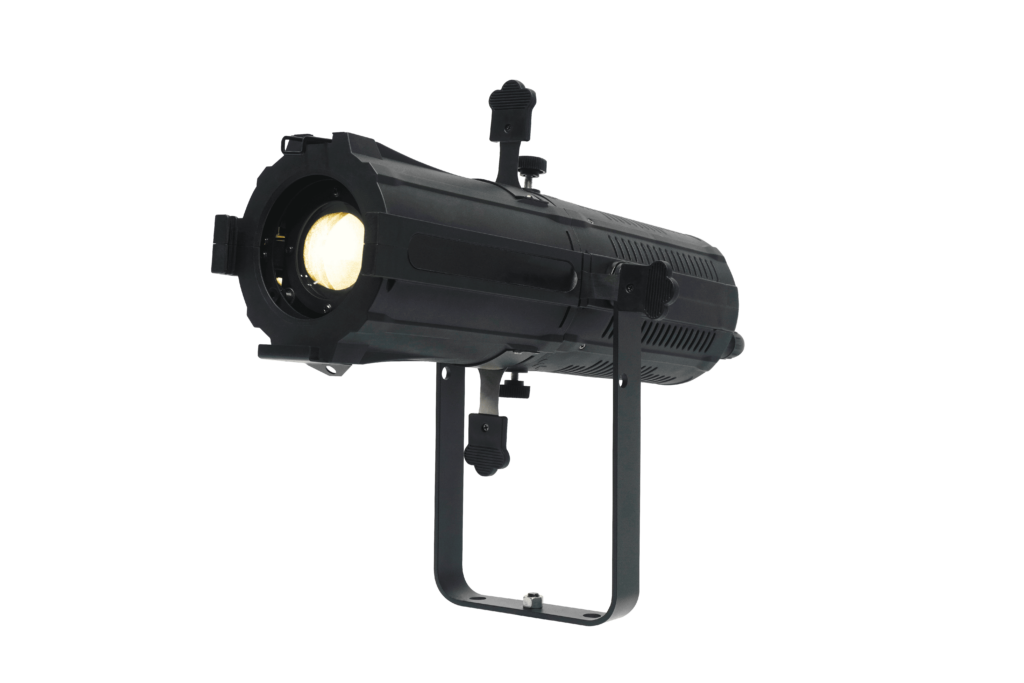

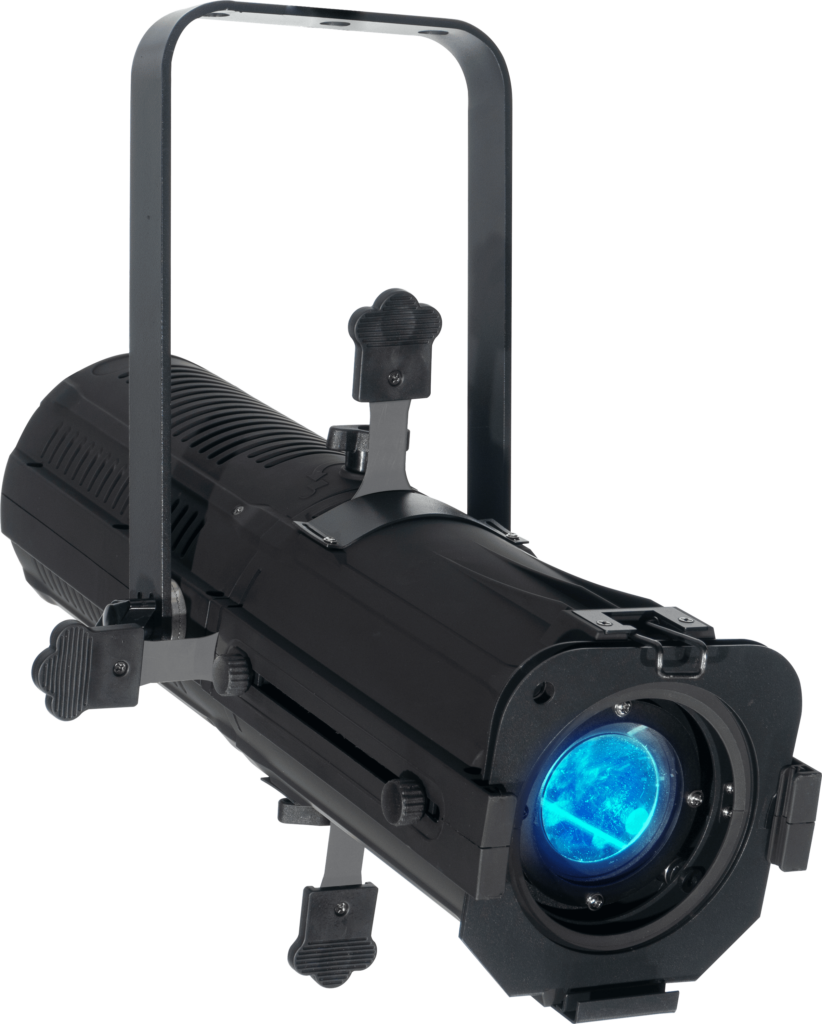

Sagoma Colors PL100PZC is a compact 100W HD imaging RGBL LED light profile zoom manual 15-30 or 25° – 50°

RGBL(Red+Green+Blue+Lime) create precious color mixing effect, designed to replace traditional imaging lights

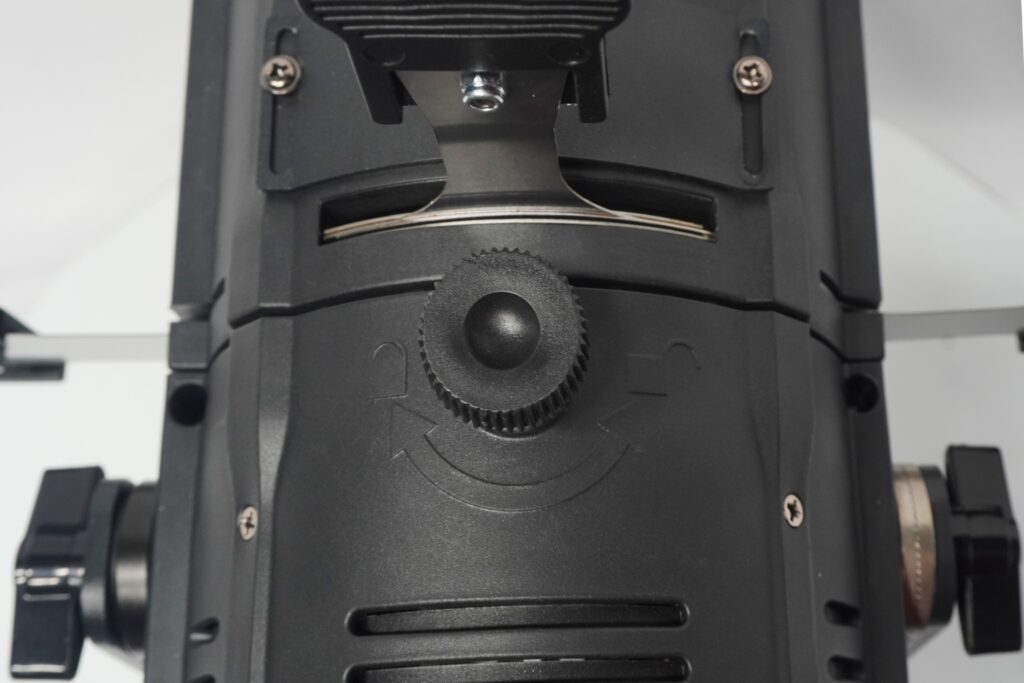

With 15°-30°/25°-50° selectable manual zoom, ranging from conventional 19°, 26°, and 36° lenses, with a uniform spot and sharp edges.

Sagoma Colors has high brightness lamp beads, stable and reliable.

DMX control dimming and  RDM function is convenient to adjust the address code remotely.

Intelligent temperature control, ultra-quiet operation for studio and theatre use with Flicker free.
Super compact body, only 3.5 kg, easy to install.

  • 00W LED HD imaging light
  • RGBL (Red + Green + Blue + Lime)
  • 15° – 30° or 25° – 50° manual zoom
  • High brightness lamp beads, stable and reliable, high brightness
  • Uniform color mixing, multiple dimming modes
  • High-definition optics, clear image optical system, clean shutter cuts beam
  • Flicker free
  • Knob, button, DMX control dimming
  • RDM function is convenient to adjust the address code remotely
  • Control channels: 1/4/6/10
  • AC power: 100–240 V nominal, 50/60 Hz

Thermal:

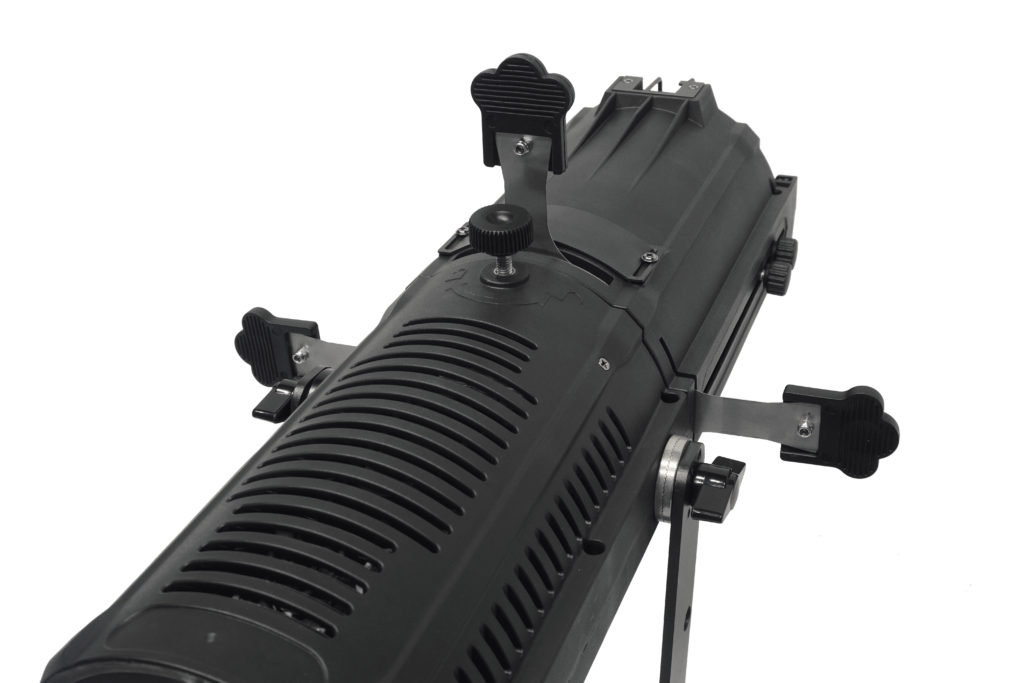

• Intelligent temperature control, ultra-quiet operation

Installation:
• Environment: IP20
• Orientation: Any

  • PowerCON in & out
  • 5-pin XLR in&out
  • Housing material: engineering plastic
  • Color: Black
  • Accessories(incl.): Power cable, gel frame, Safety rope
  • Accessories(opt.): Gobo holder, Clamp, Y split power cable
  • Dimensions: 459 x 221 x 342mm
  • Net Weight: 3.5kg
