PANORAMIC

100W tunable white LED profile zoom

Adjustable Beam angle 10° – 60°

100W COB white LED, constant output

 2700K – 6500K tunable color temperature

CRI over 90, CQS 90(5600K), Flicker free with selectable PWM

HD optical system, clean shutter cuts beam

Rotary, key, DMX control of dimmer

Intelligent fan, silent operation

TECHNICAL DATA

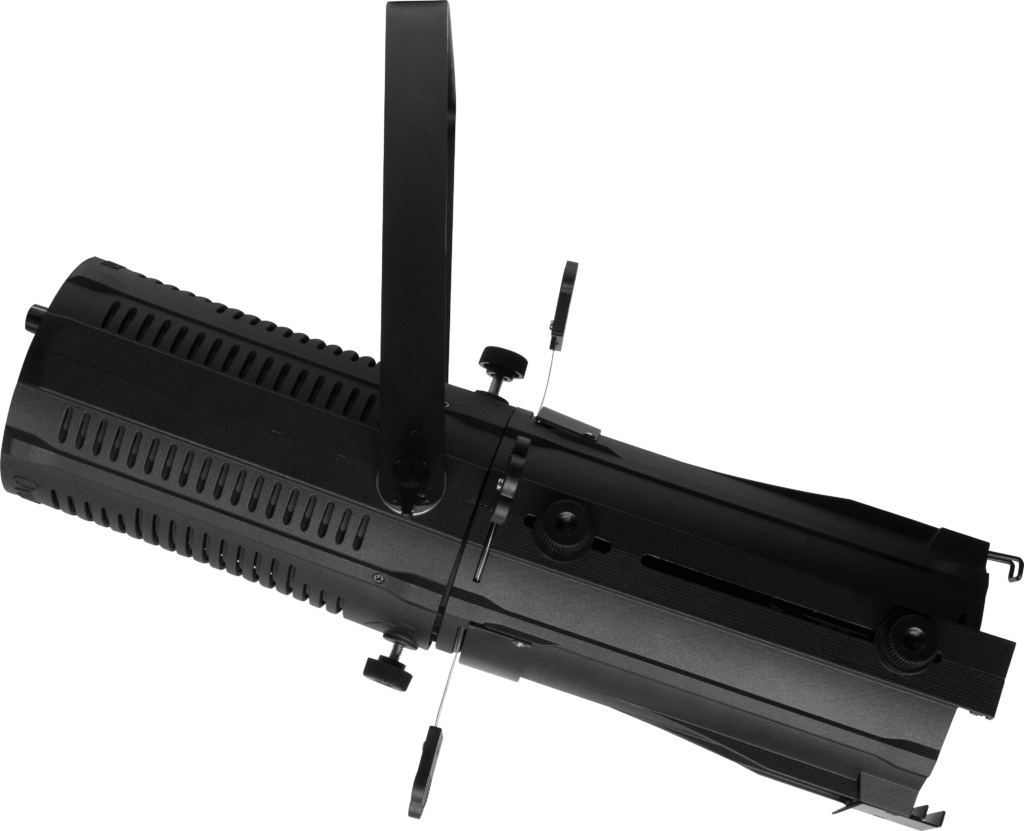

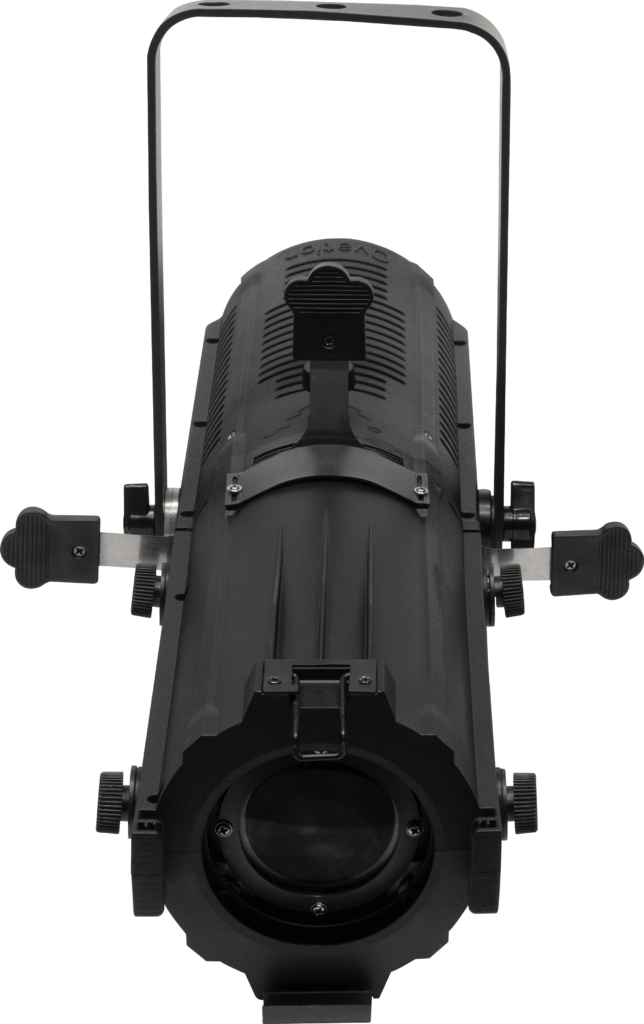

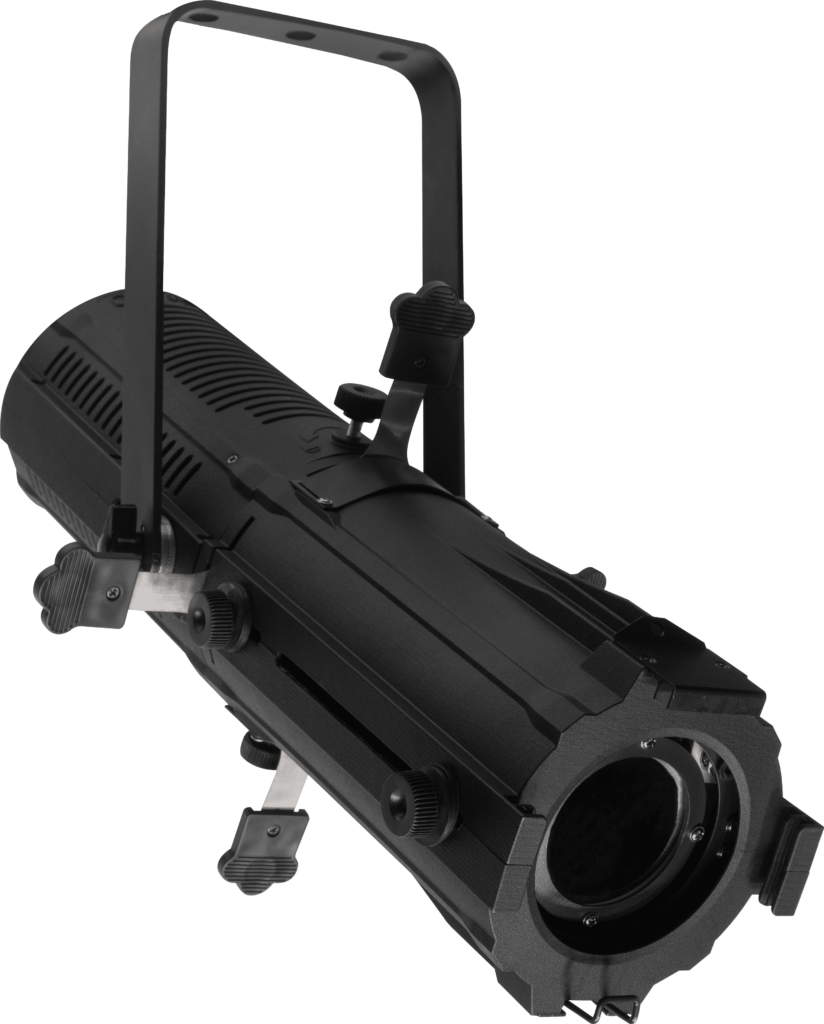

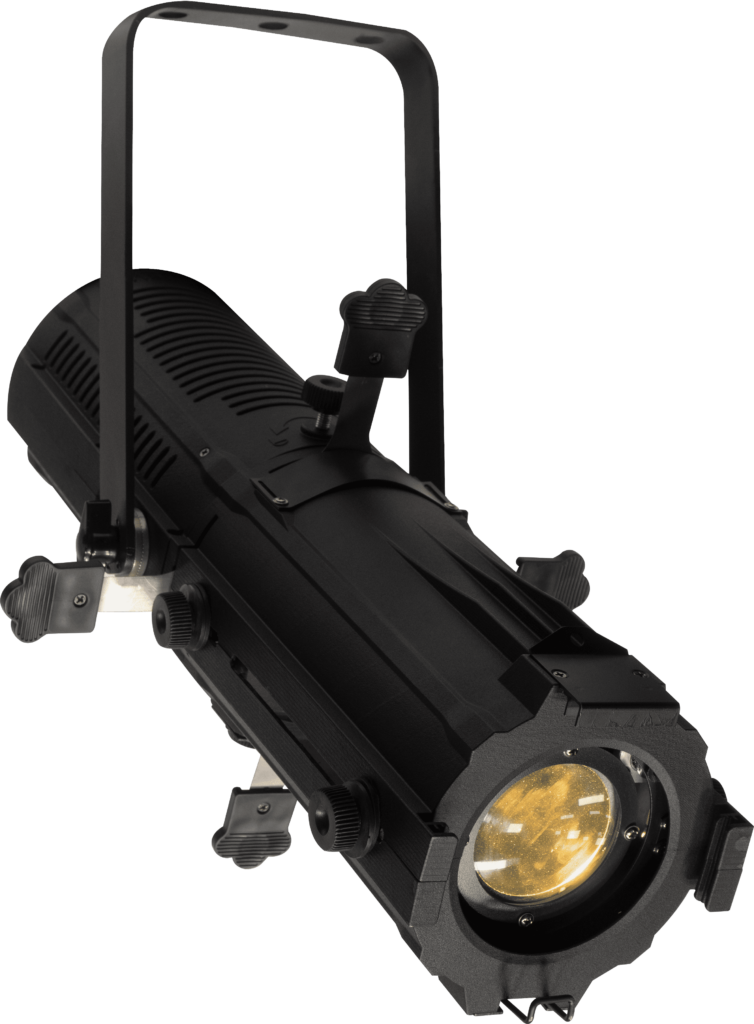

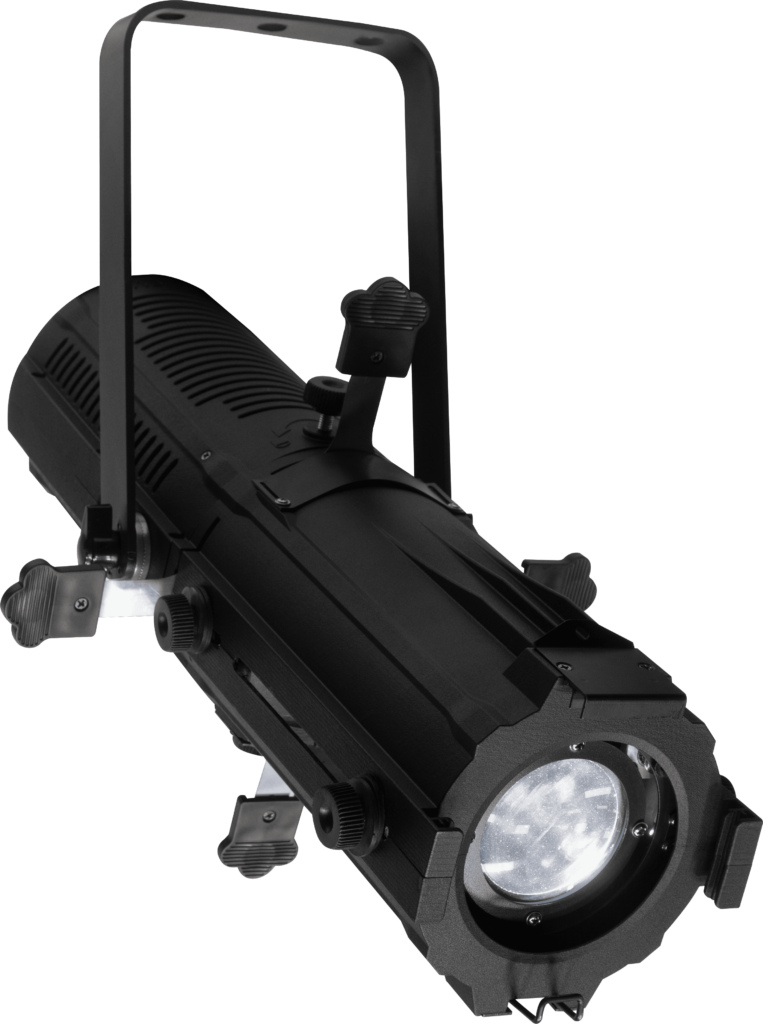

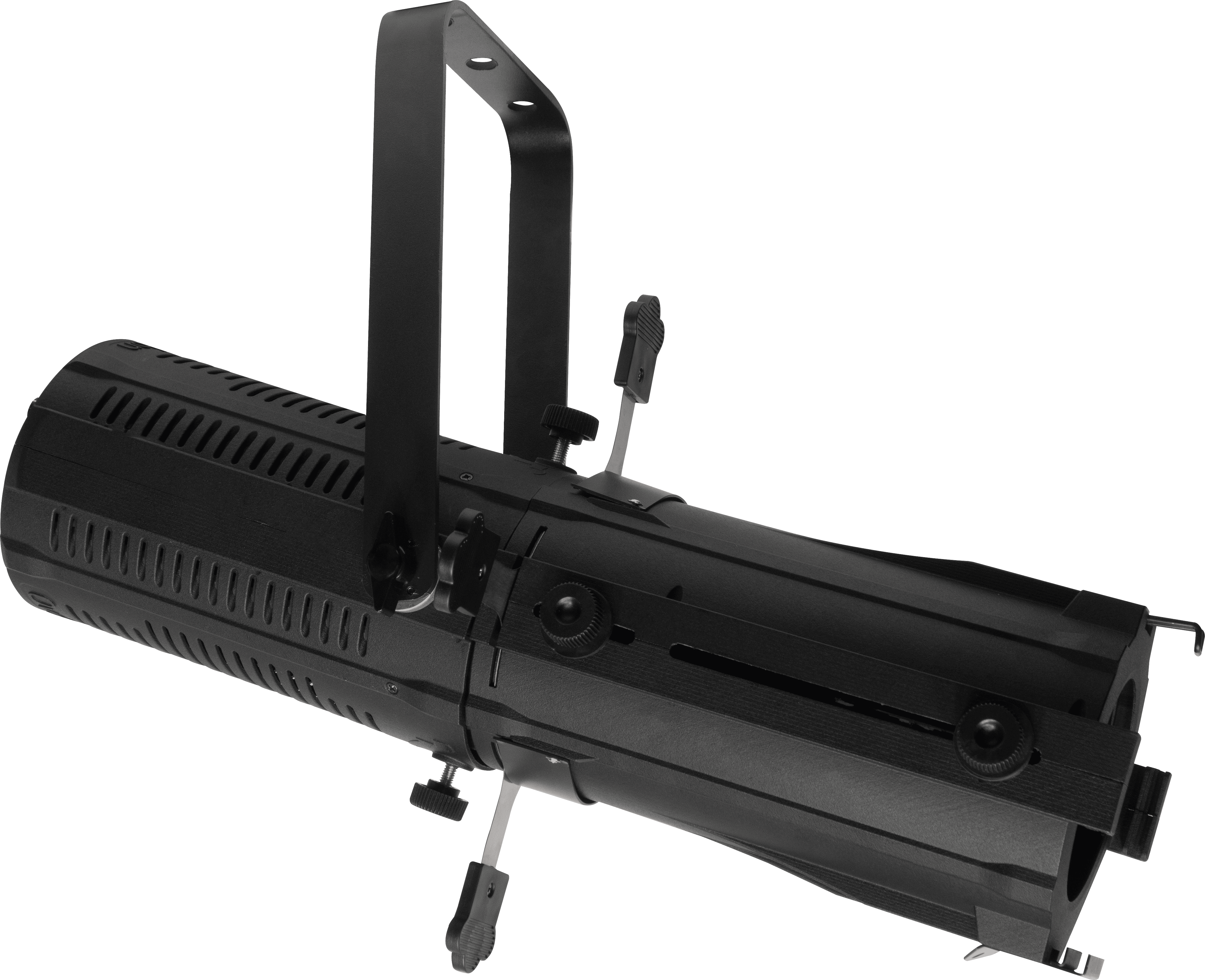

Sagoma Tunable PL100PZT is a compact 100W tunable white LED profile zoom manual 15-30 or 25° – 50°

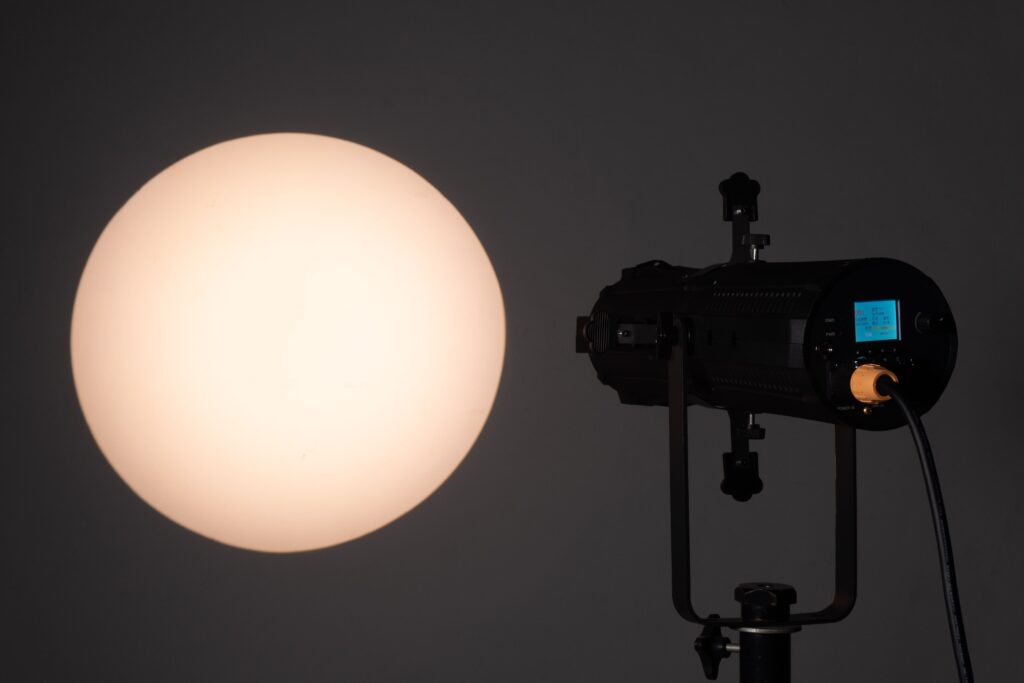

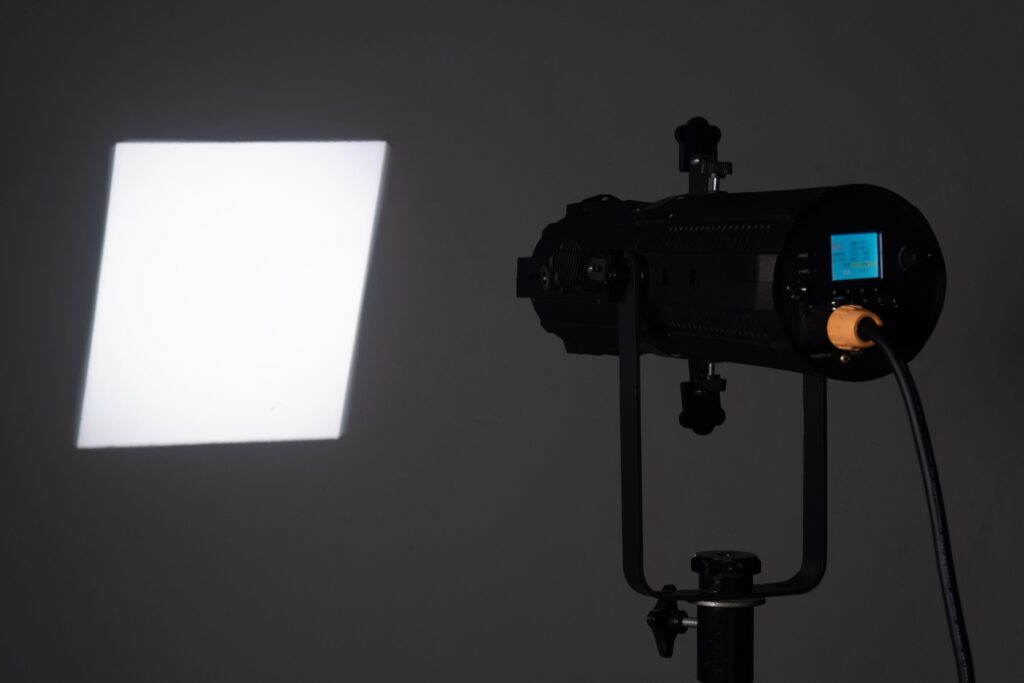

Color temperature: It comes with tunable color temperature from 2700K to 6500K. Moreover, our innovation design ensures that the power stays same when adjusting color temperature. It is 100Watt warm white, 100’Watt cold white and still 100Watt when mixing.

HD optical system, clean shutter cuts beam. Intelligent fan, silent operation for studio and theatre use with Flicker free with selectable PWM.
Super compact body, only 3.5 kg, easy to install.

  • 100W WW + 100W CW LED Constant Output
  • 2700K – 6500K tunable
  • CRI over 90, CQS 90(5600K)
  • 15° – 30° or 25° – 50° manual zoom

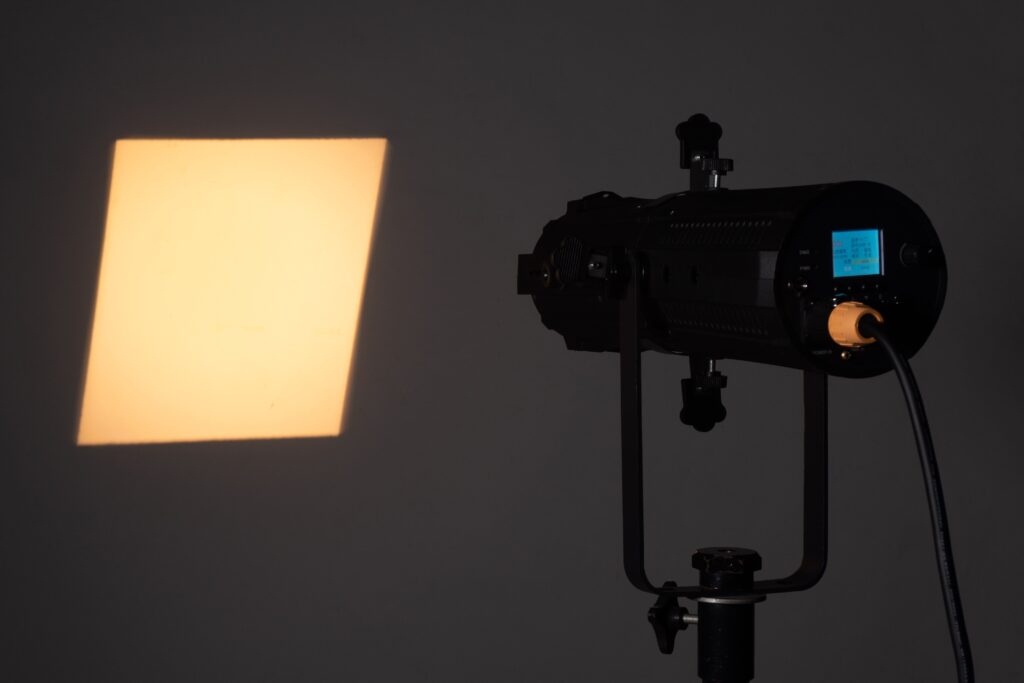

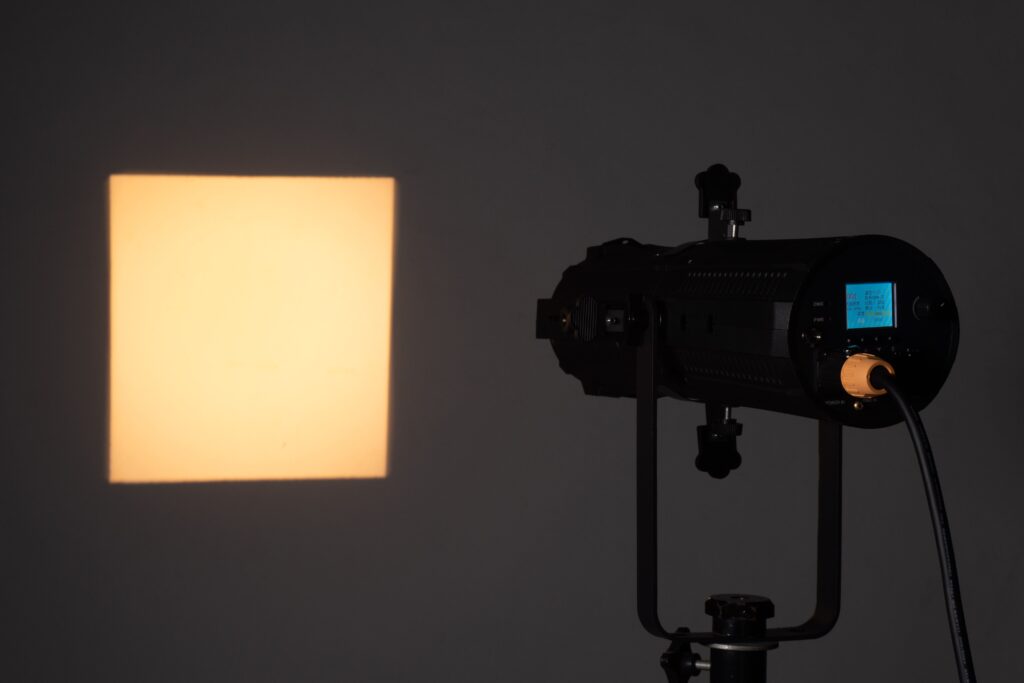

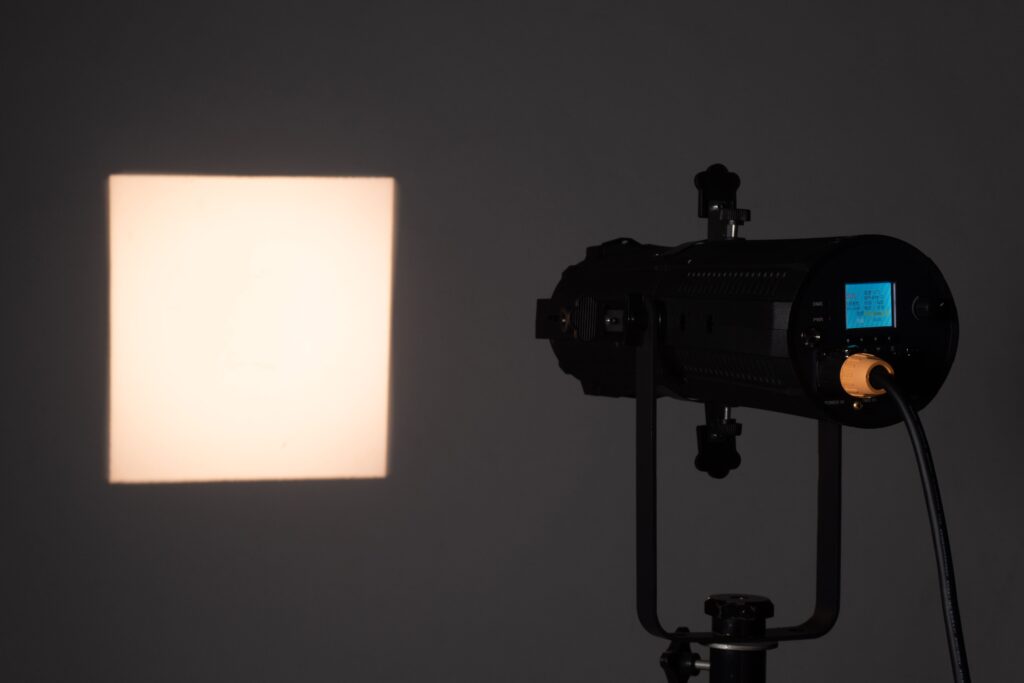

  • HD optical system, clean shutter cuts beam
  • Tunable T°color 2700-6500k
  • Flicker free with selectable PWM

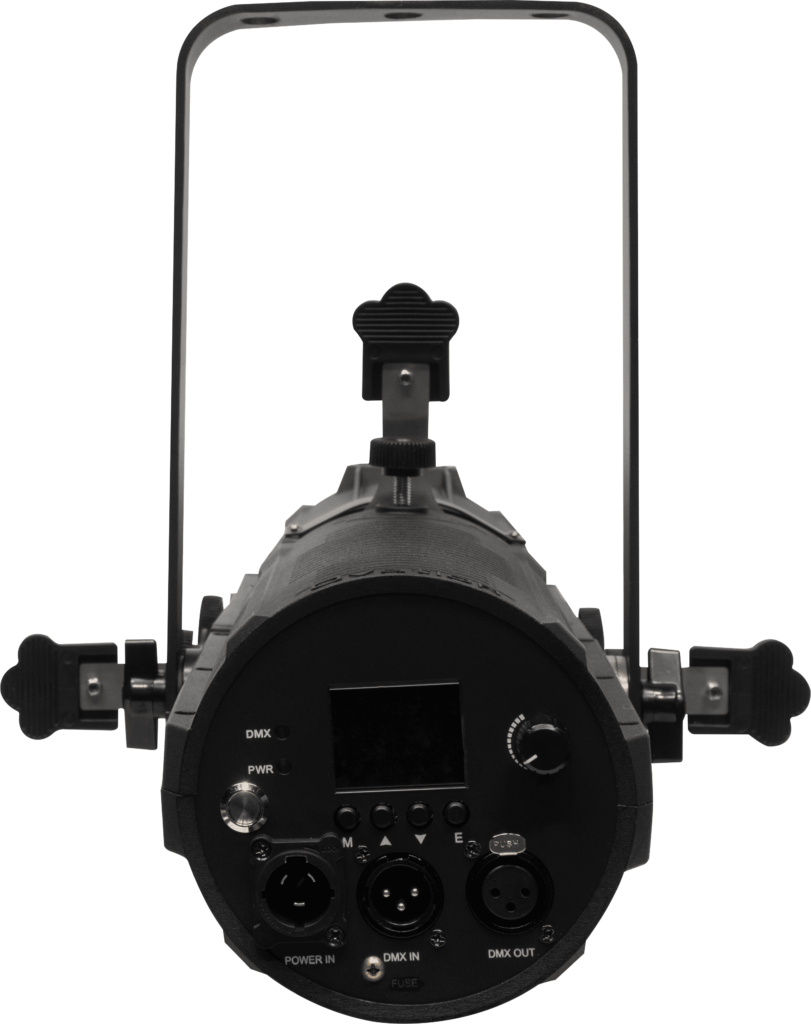

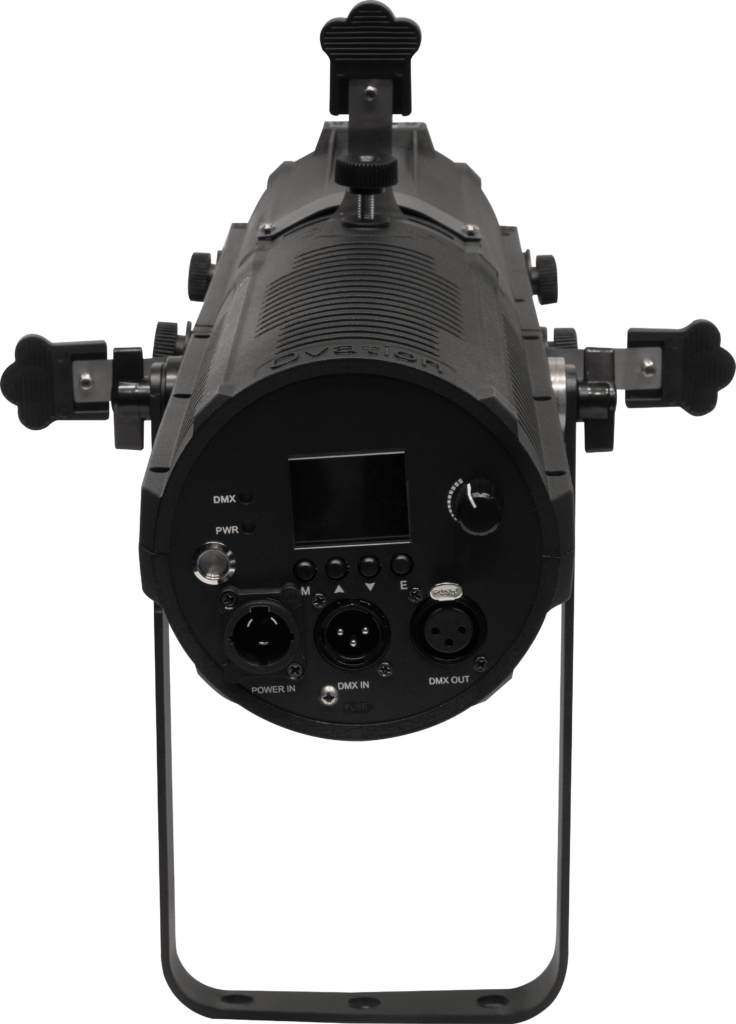

  • Rotary, key, DMX control of dimmer
  • Control channels: 2/5
  • AC power: 100–240 V nominal, 50/60 Hz

Photometric data:
• CRI (Color Rendering Index) : >90

Thermal:
• Intelligent fan, silent operation

Installation:
• Environment: IP20
• Orientation: Any

  • PowerCON in & out
  • 5-pin XLR in&out
  • Housing material: engineering plastic
  • Color: Black
  • Accessories(incl.): Power cable, gel frame, Safety rope
  • Accessories(opt.): Gobo holder, Clamp, Y split power cable
  • Dimensions:459 x 221 x 342mm
  • Net Weight: 3.5kg
