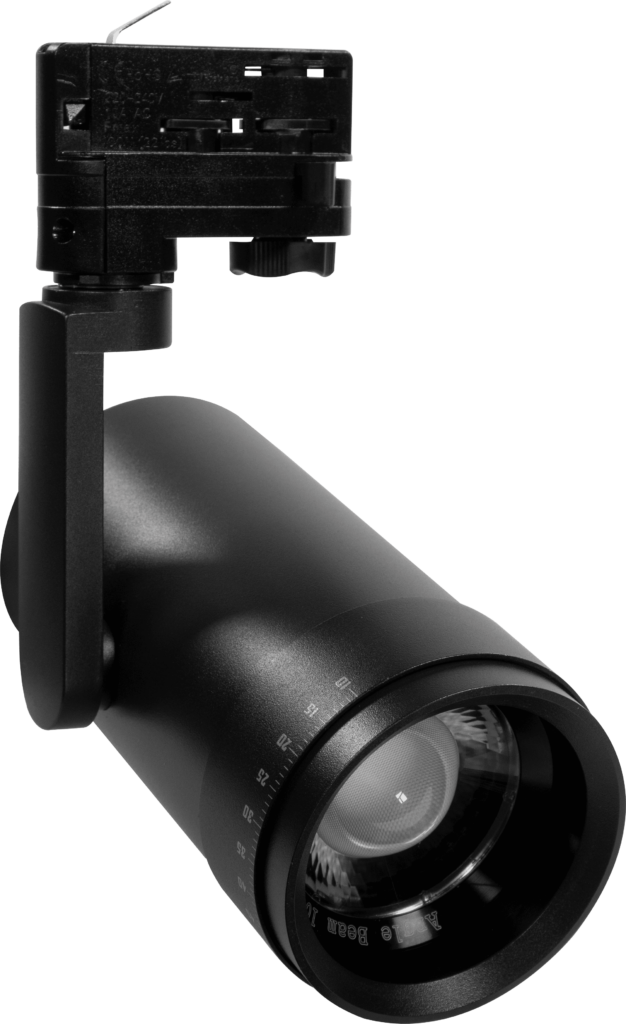

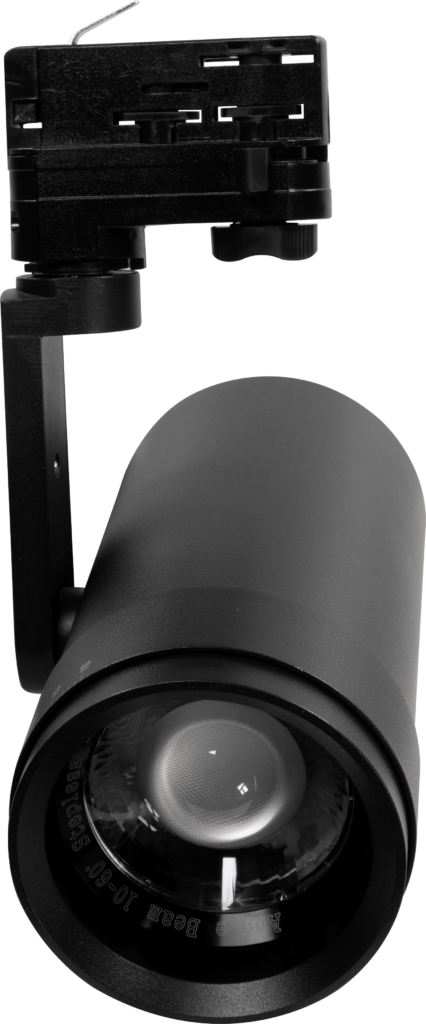

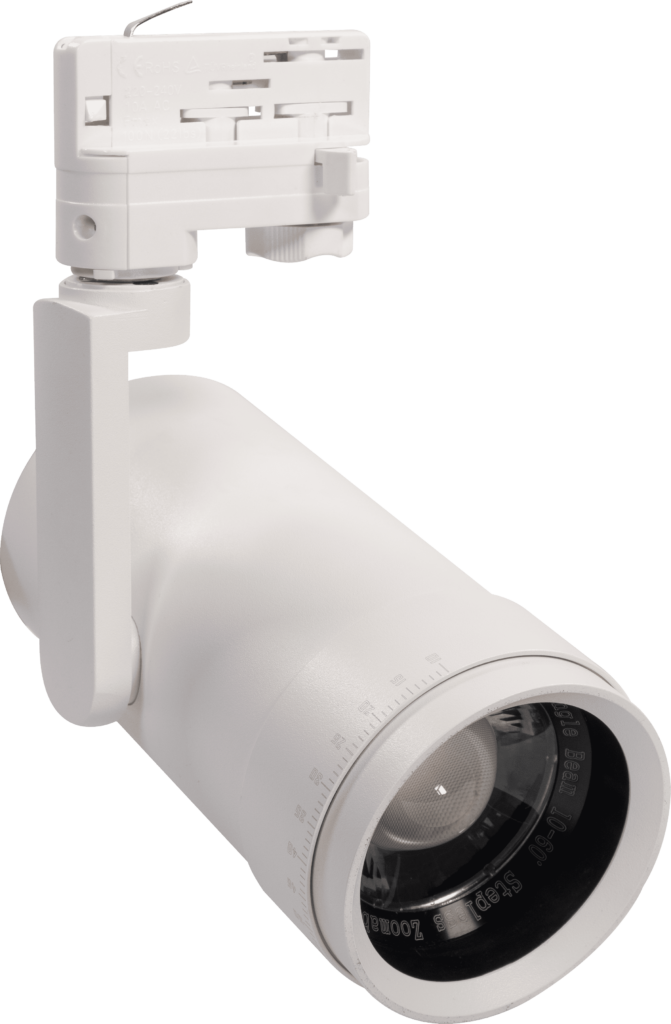

Spot Wash Light four wire track adapter

Adjustable Beam angle 10° – 60°

35Watt WW + 35Watt CW constant output

 2700K – 6000K tunable

Average CRI 95, TLCI 90, flicker free

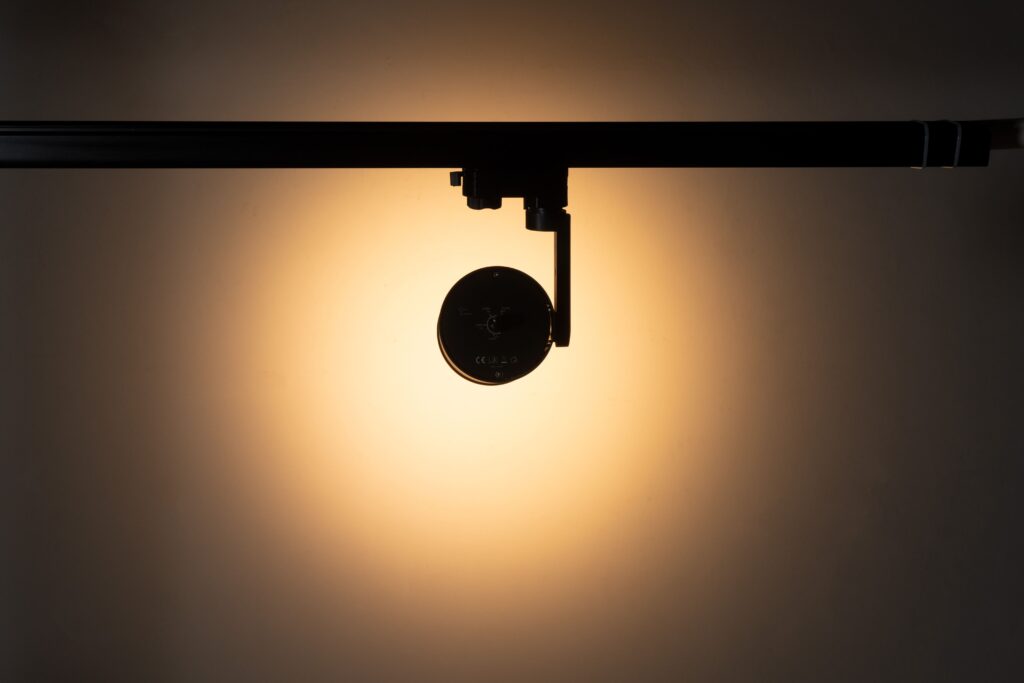

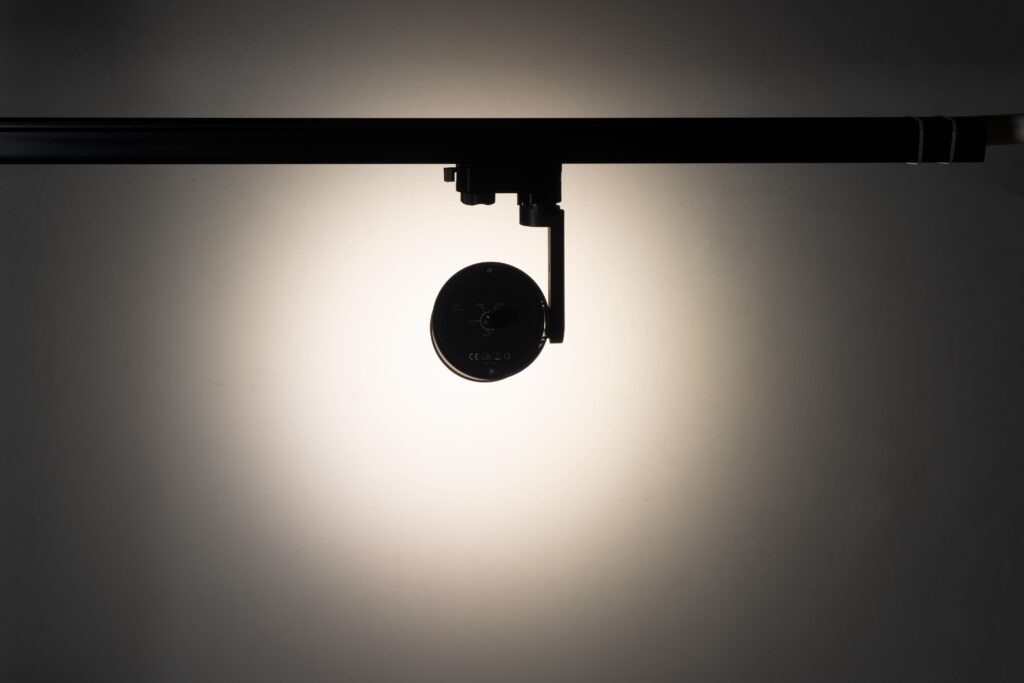

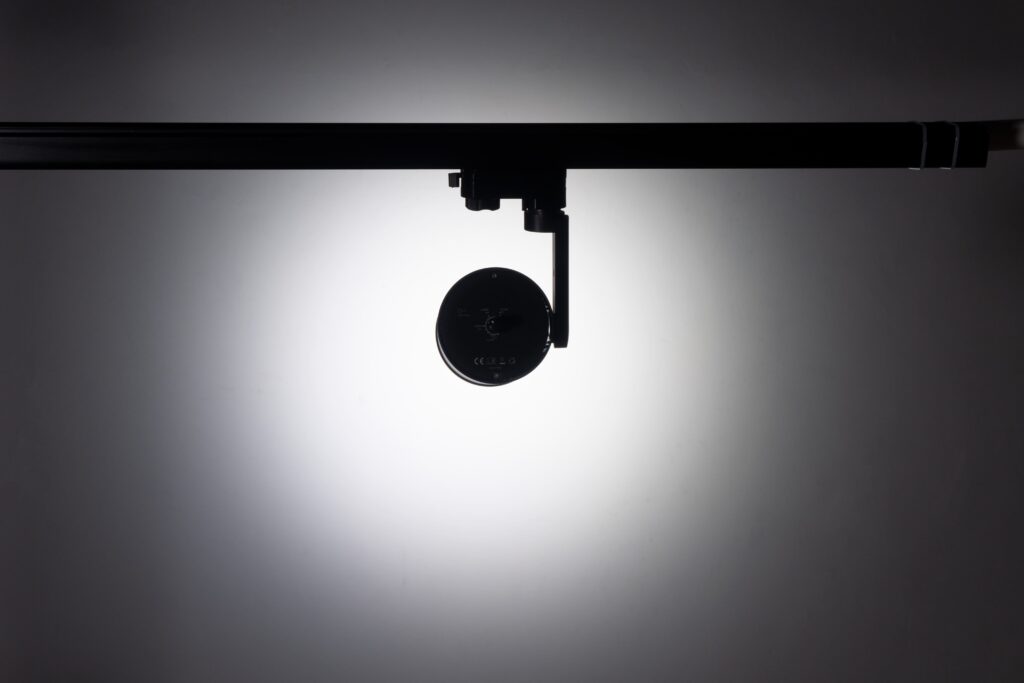

Flat and even wash effect, smooth dimming

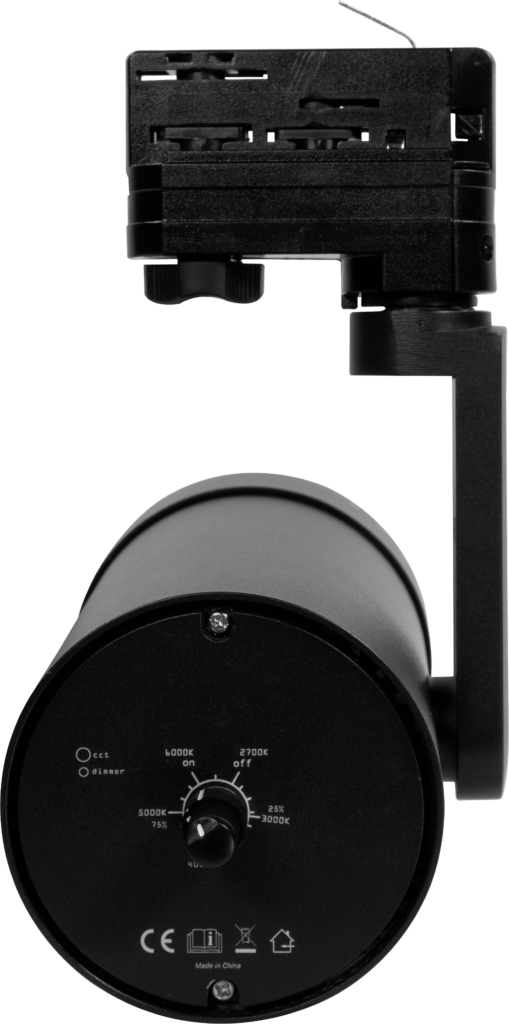

Knob control of dimmer and CCT

Fan-free design, no noise

TECHNICAL DATA

ShowTrack PL035TZ is high output spot wash light with adjustable beam angle
Color temperature tunable from 2700K – 6000K. High CRI, TLCI and TM30.

A fixture especially designed for museums, luxury shop, theatre, chruch, Museum, Exhibition lighting, Fashion.

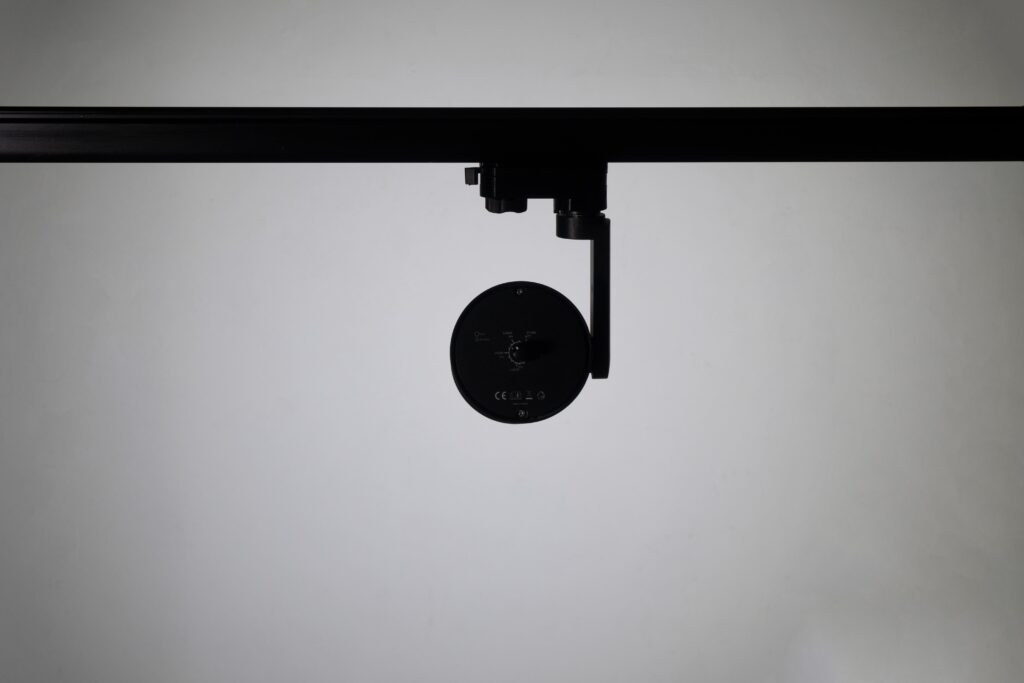

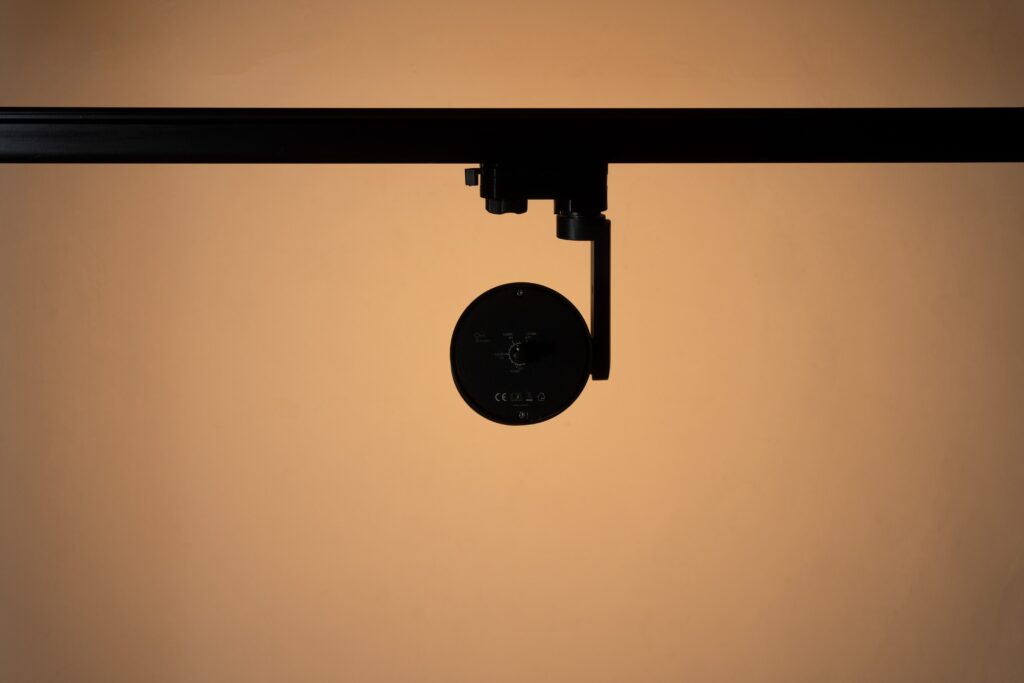

Color temperature: It comes with tunable color temperature from 2700K to 6000K. Moreover, our innovation design ensures that the power stays same when adjusting color temperature. It is 35Watt warm white, 35Watt cold white and still 35Watt when mixing.

Robust design: The whole body is die-casting aluminum. Unique, clean and appearance. It’s durable for application.

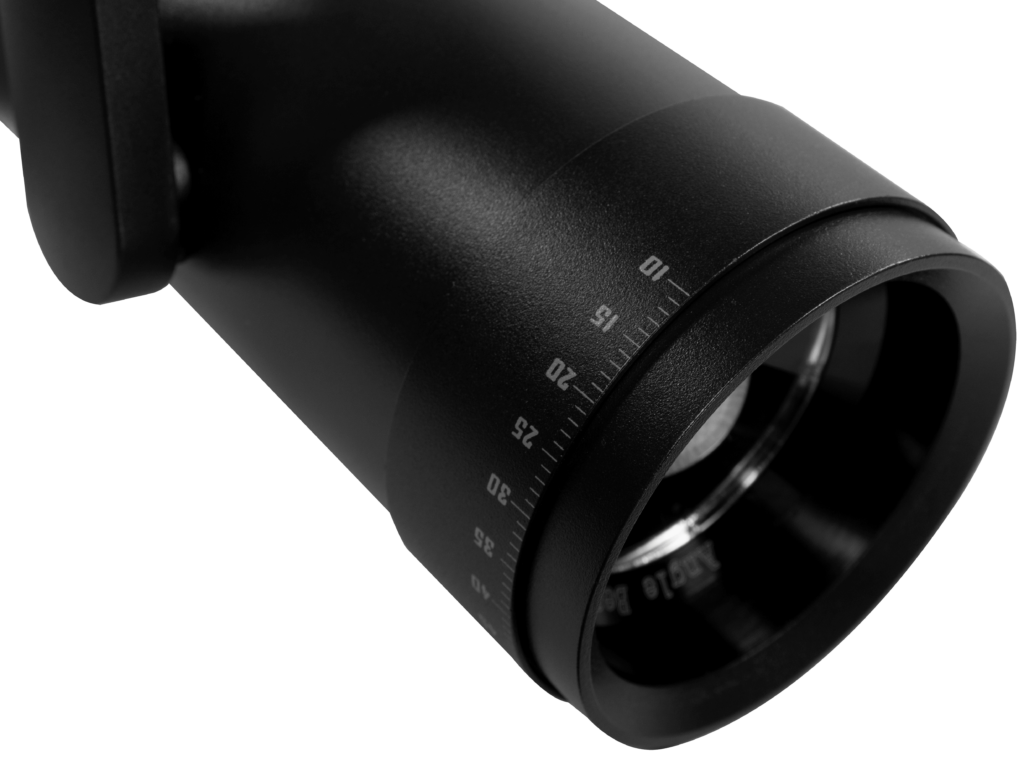

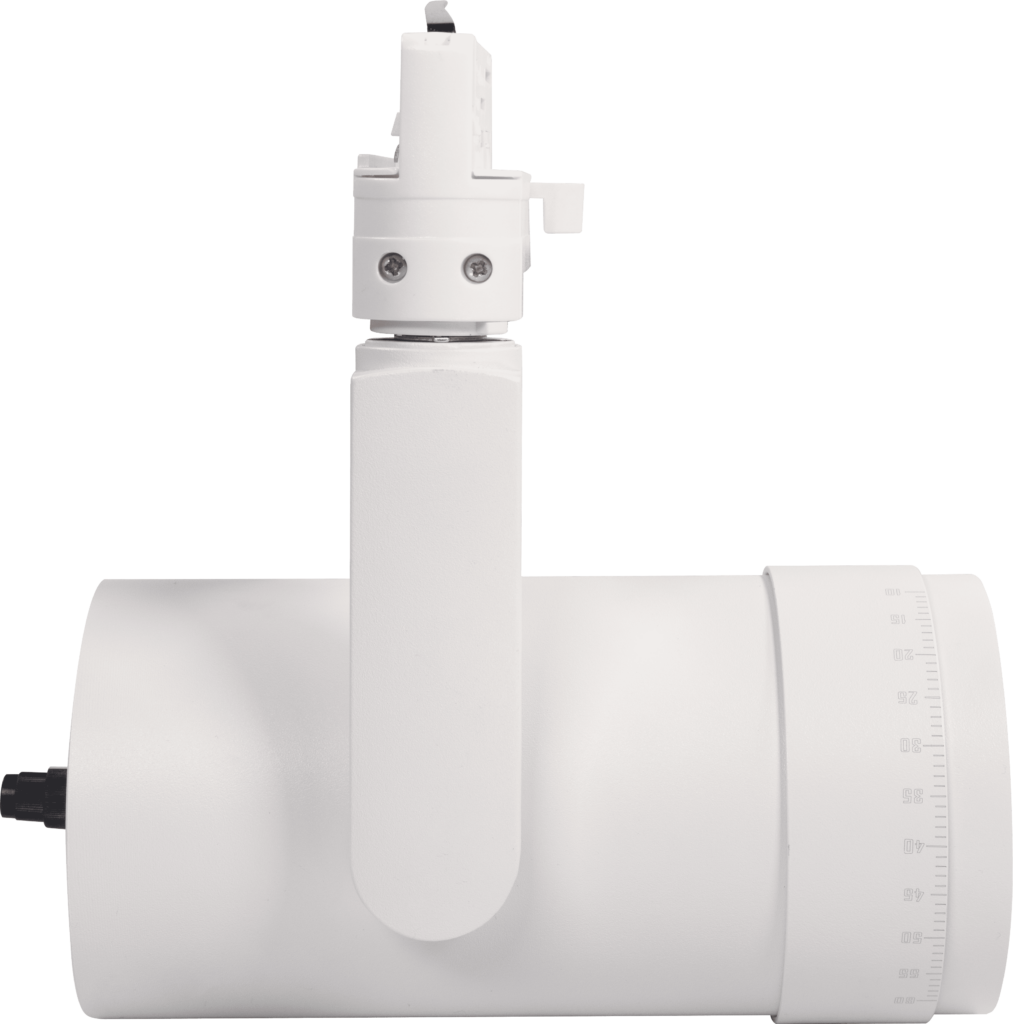

Manual adjustable beam angle 10-60°

Color reproduction: High CRI 95. The high color rendition make sure accurate color reproduction no matter.

  • 35W WW + 35W CW LED Constant Output
  • 2700K – 6000K tunable
  • CRI 95, TLCI≥90
  • 10° – 60° manual zoom
  • Flat and even wash effect
  • Tunable T°color 2700-6000k
  • Flicker free
  • Knob control of dimmer and CCT
  • AC power: 100–240 V nominal, 50/60 Hz
  • Four wire track adapter

Photometric data:
• CRI (Color Rendering Index) : >95
• TLCI (Television Lighting Consistency Index): >90

Thermal:
• Fan-free design, no noise

Installation:

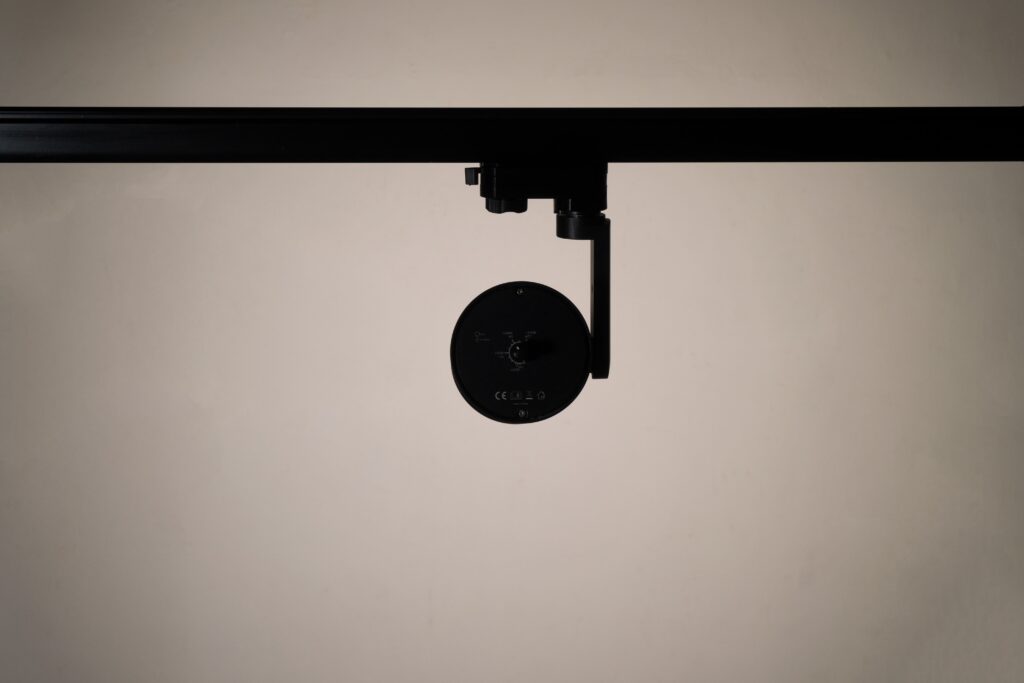

• Mounting: 4 wire 3 circuits track adapter
• Environment: IP20
• Orientation: Any

  • PowerCON in & out
  • 5-pin XLR in&out
  • Housing material: Die-cast aluminum
  • Color: Black

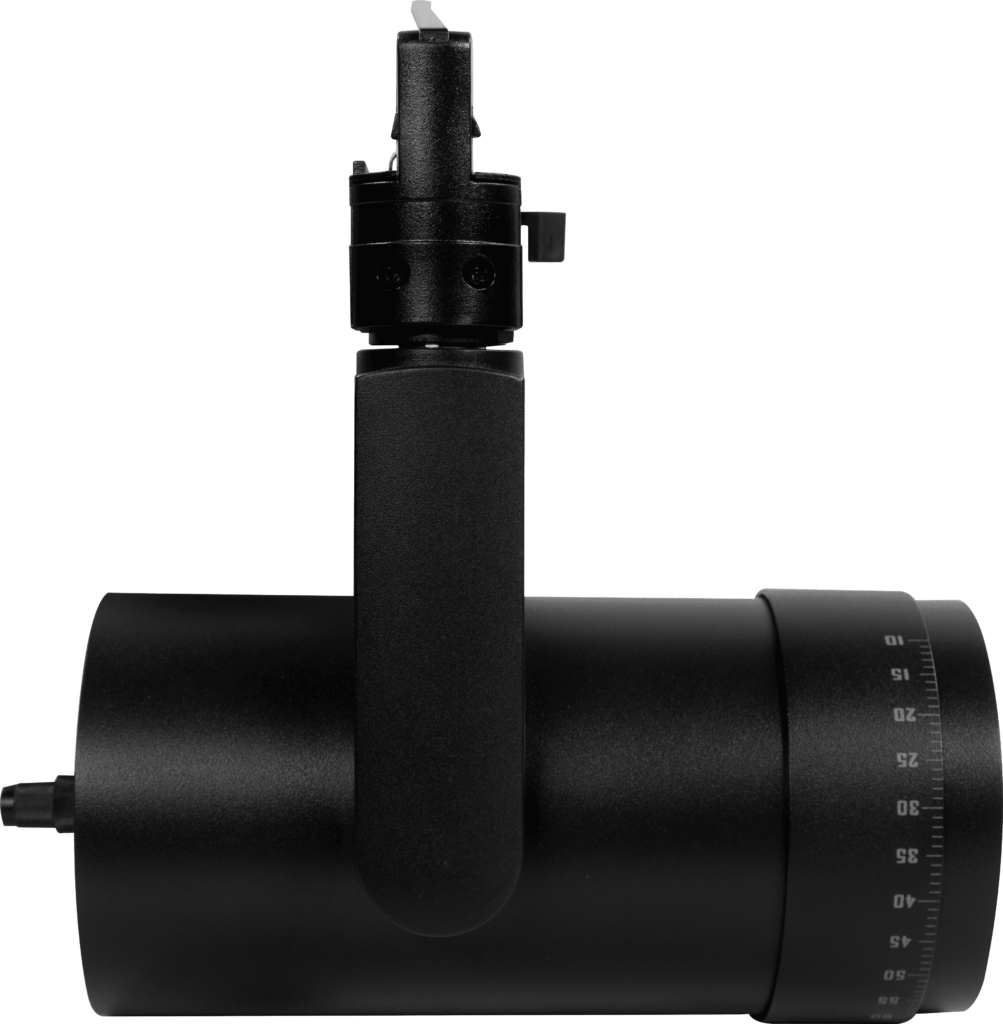

  • Dimensions: 270 x 105 x 85mm
  • Net Weight: 1.25kg
