PANORAMIC

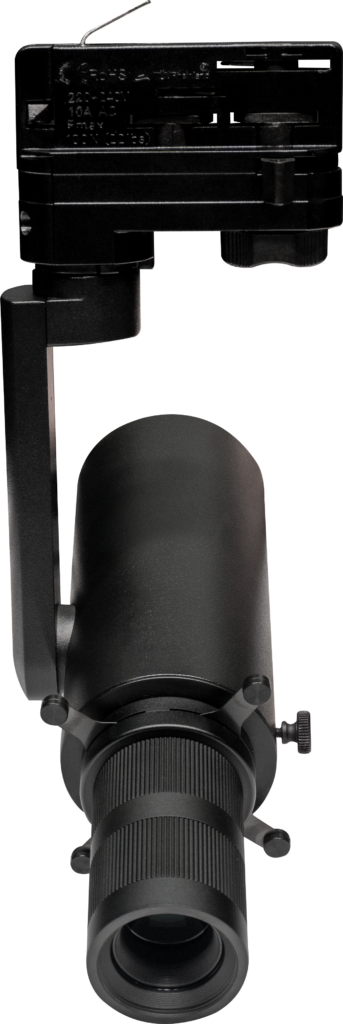

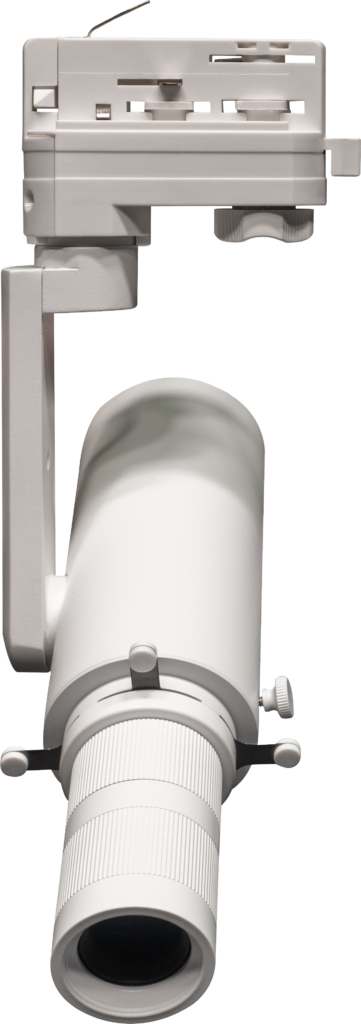

Profile Spot Led Light four wire track adapter

Version 10w adjustable beam angle 20°-35°

Version 30w adjustable beam angle 25°-40°

10/30W WW + 10/30W CW constant output

 2700K – 6000K tunable

Average CRI 90/92,

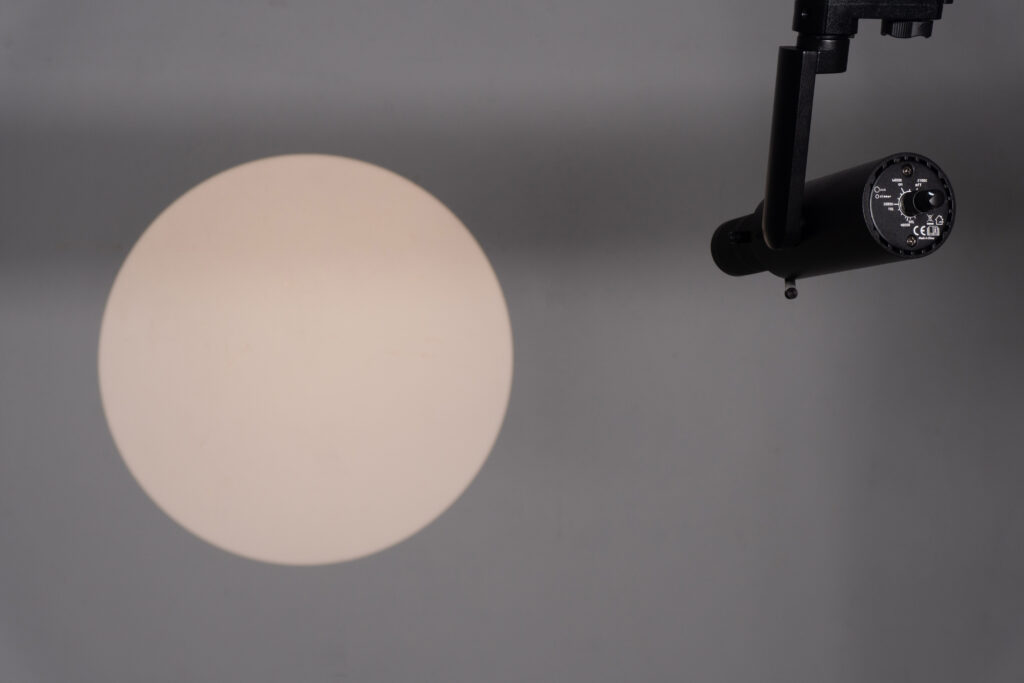

Spot shape change adjusting the slices

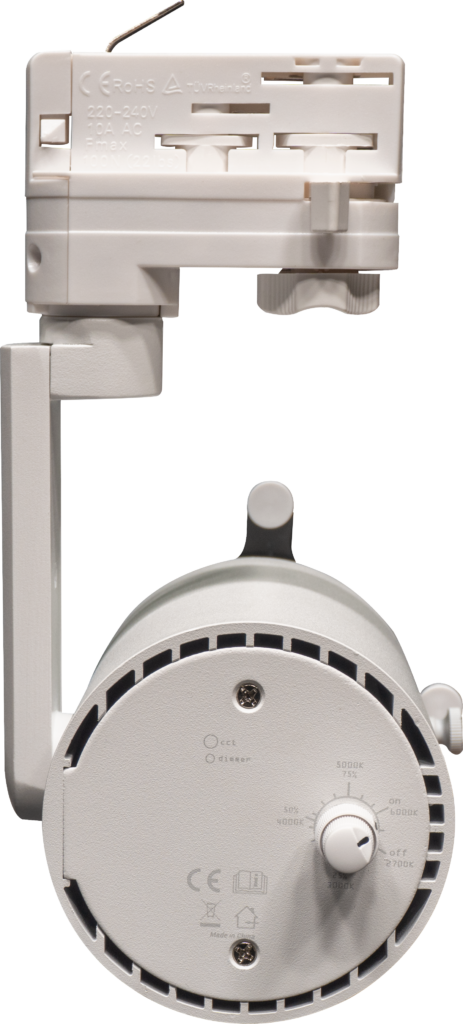

Knob control of dimmer and CCT

Fan-free design, no noise

TECHNICAL DATA

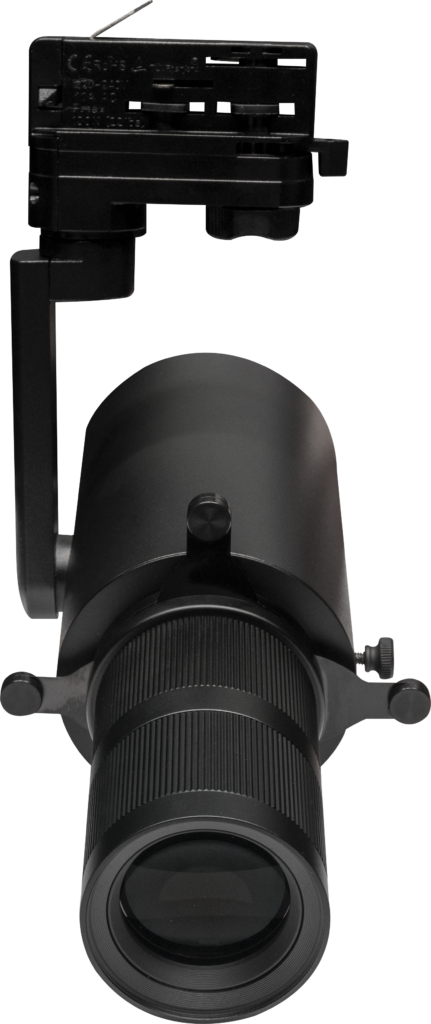

ShowTrack Profile is high output spot profile Led light with adjustable beam angle
Color temperature tunable from 2700K – 6000K. High CRI.

There is two version: 10w and 30w tunable Led with with a innovation design ensures that the power stays same when adjusting color temperature.

Robust design: The whole body is die-casting aluminum. Unique, clean and appearance. It’s durable for application.

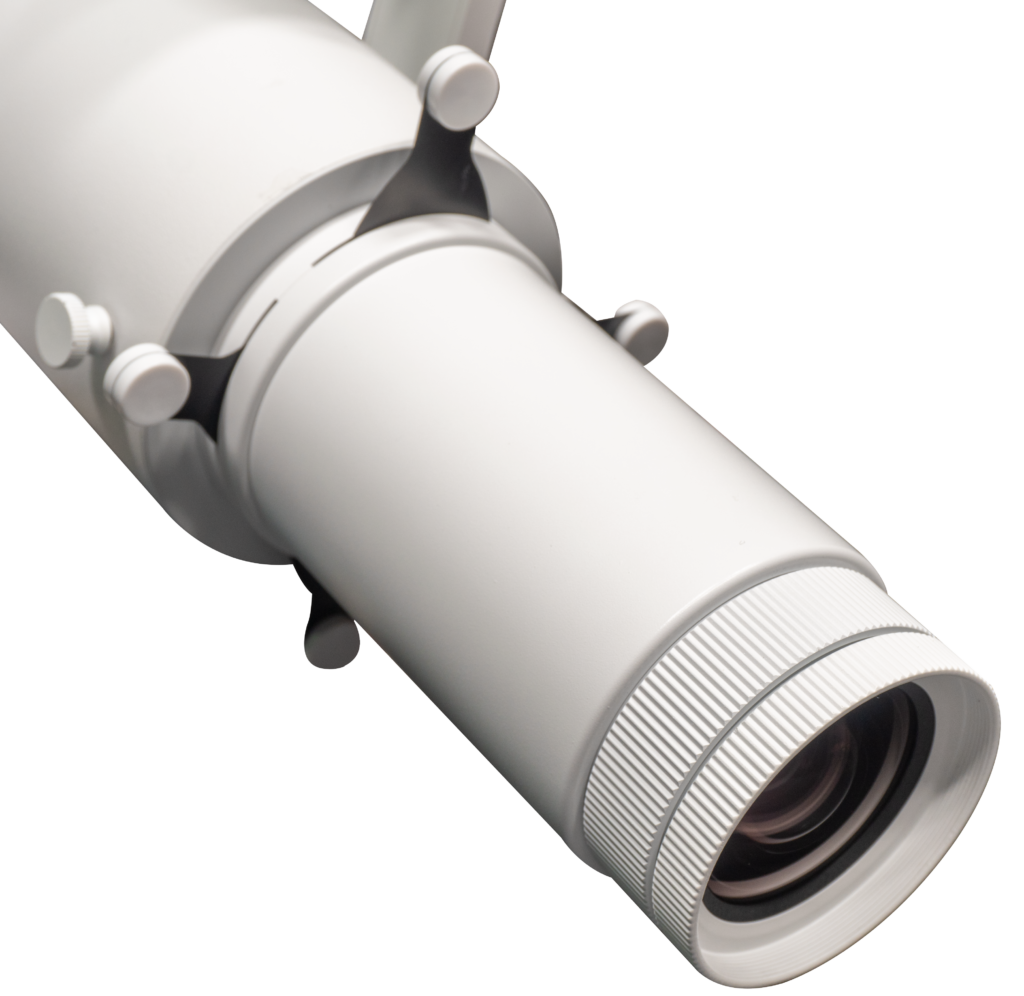

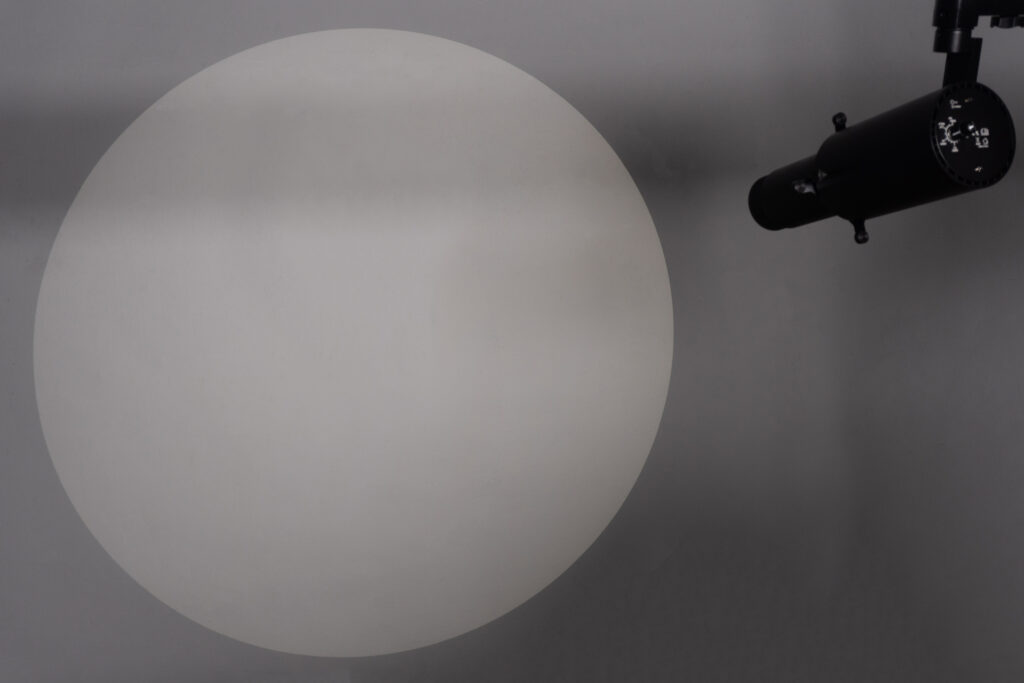

Manual adjustable beam angle 20-35° the version 10w and 25-40° the version 30w.

Color reproduction: High CRI 90/92. The high color rendition make sure accurate color reproduction no matter.

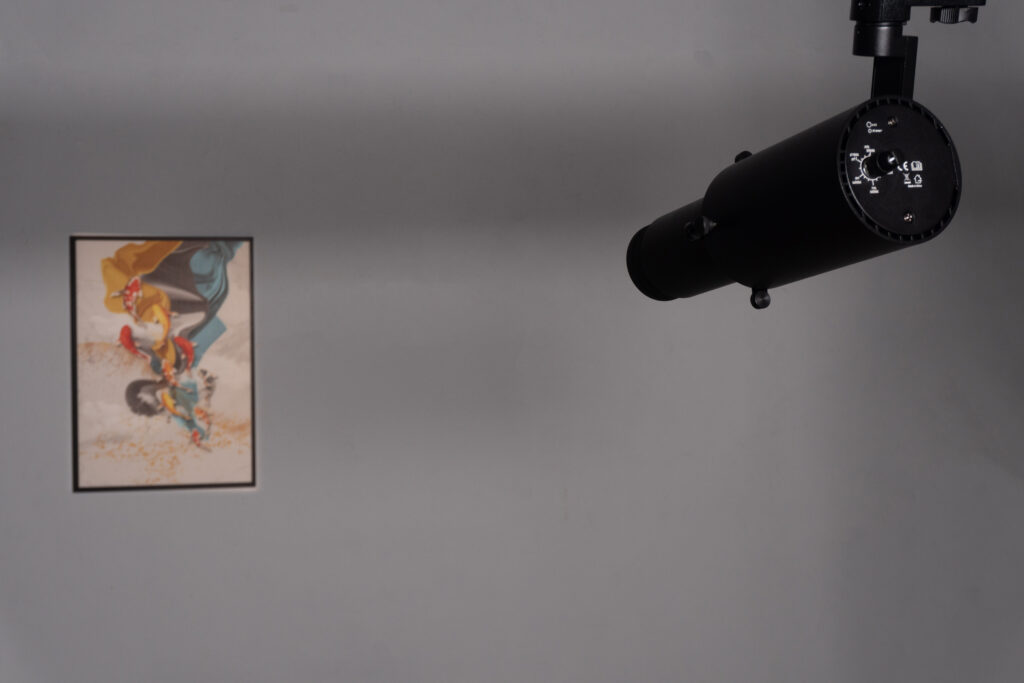

A fixture especially designed for museums, luxury shop, theatre, chruch, Museum, Exhibition lighting, Fashion.

  • Version1: 10W WW + 10W CW LED Constant Output
  • Version2: 30W WW + 30W CW LED Constant Output
  • 2700K – 6000K tunable
  • CRI 90/92
  • Version1: 20° – 35° manual zoom
  • Version2: 25° – 40° manual zoom
  • Beam angle adjustable
  • Tunable T°color 2700-6000k

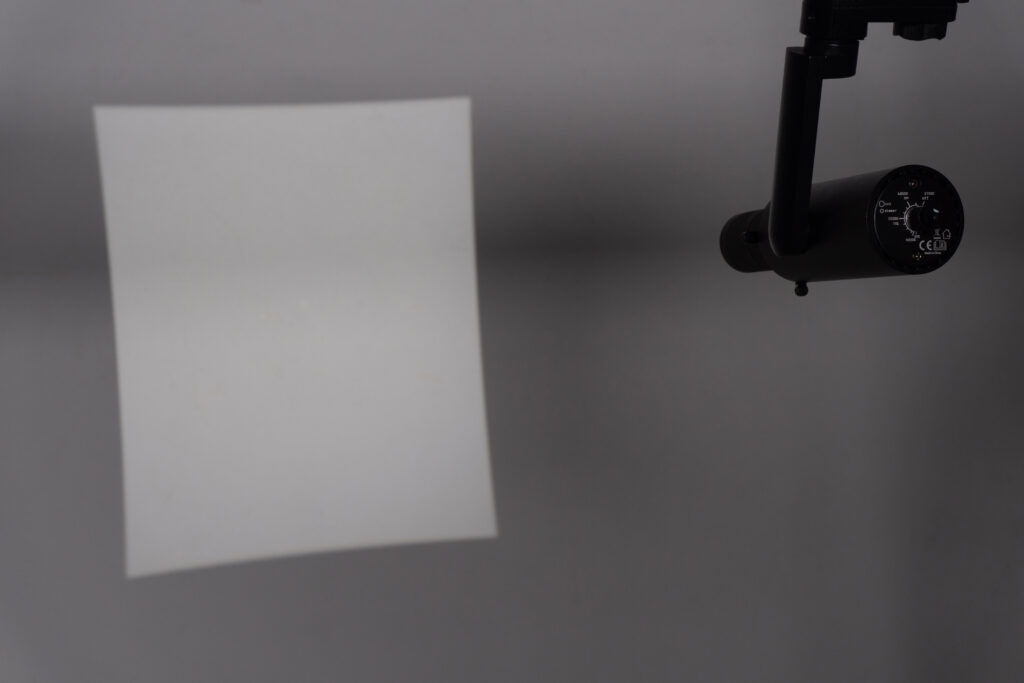

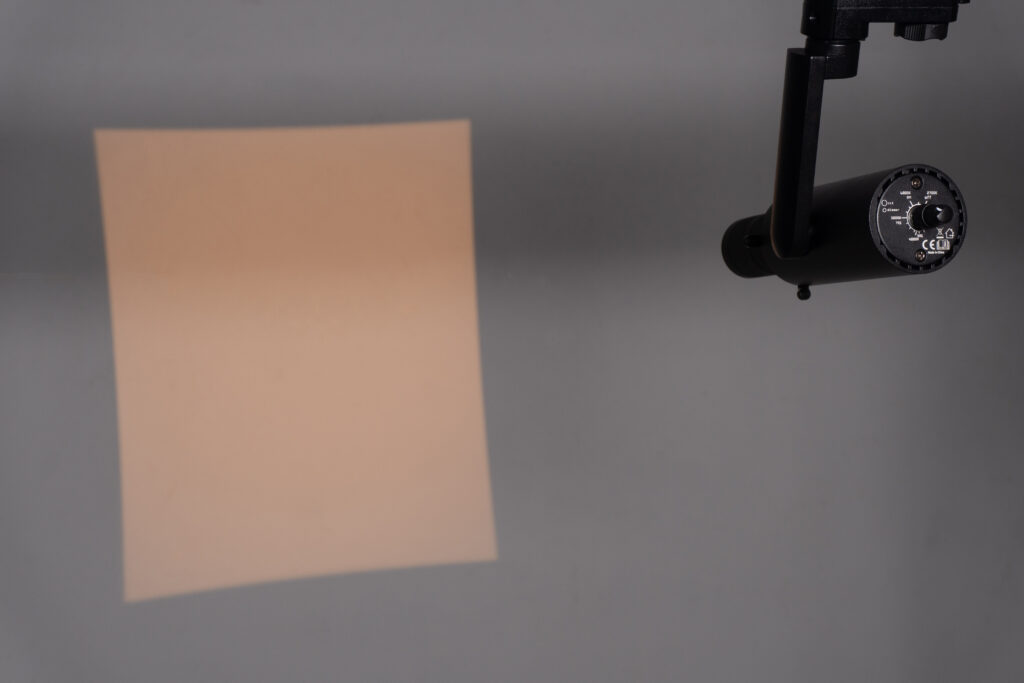

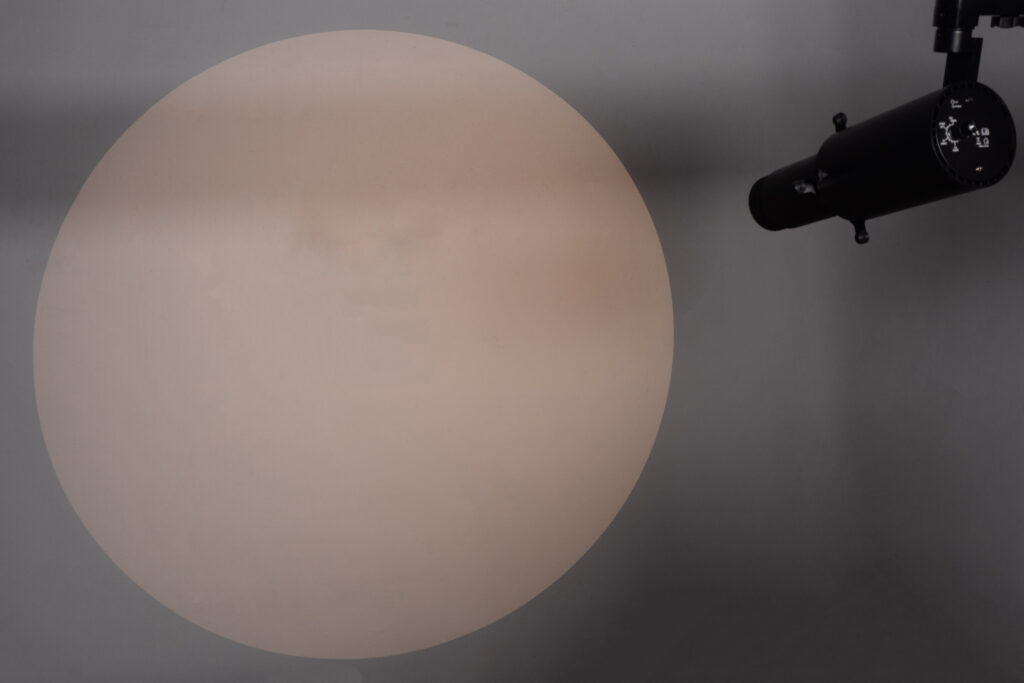

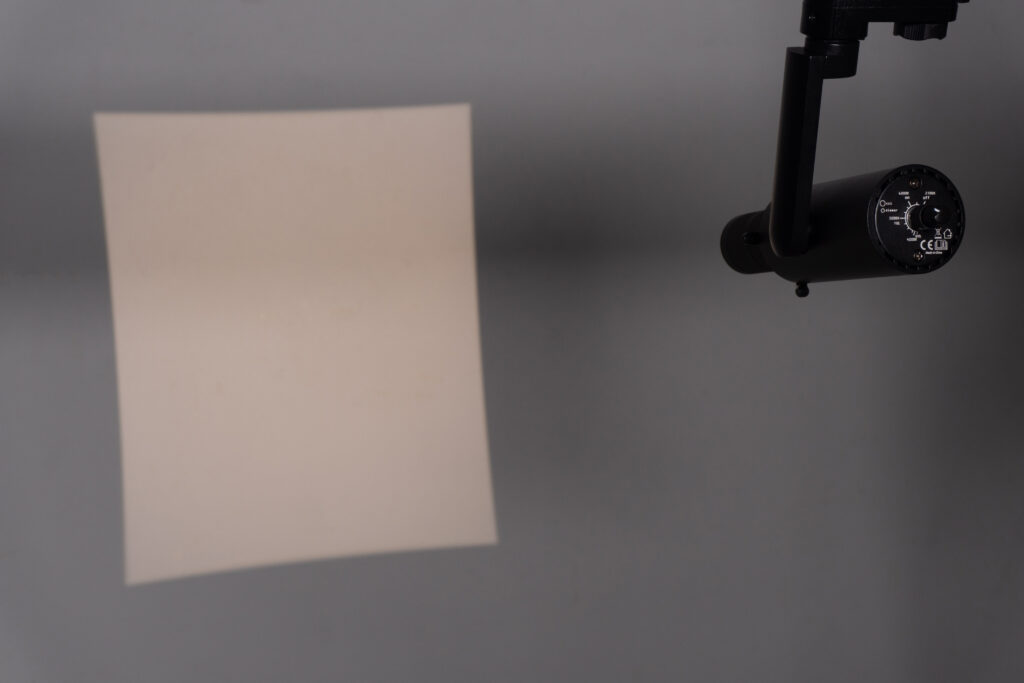

  • Spot shape can be changed by adjusting the slices
  • Dimmer 0-100%
  • Knob control of dimmer and CCT
  • AC power: 220–240 V nominal, 50/60 Hz
  • 4 wire 3 circuits track adapter

Photometric data:
• CRI (Color Rendering Index) : >90 (Version 10w) >92 (Version 30w)

Thermal:
• Fan-free design, no noise

Installation:
• Mounting: 4 wire 3 circuits track adapter
• Environment: IP20
• Orientation: Any

  • 4 wire 3 circuits track adapter
  • Housing material: Die-cast aluminum
  • Color: White (or Black)
  • Dimensions: 285 x 100 x 100mm (Version 1) 360 x 120 x 120mm (Version 2)
  • Net Weight: 0,70 Kg (Version 10w) 1.40 kg (Version 30w)
